Telemecanique Sensors

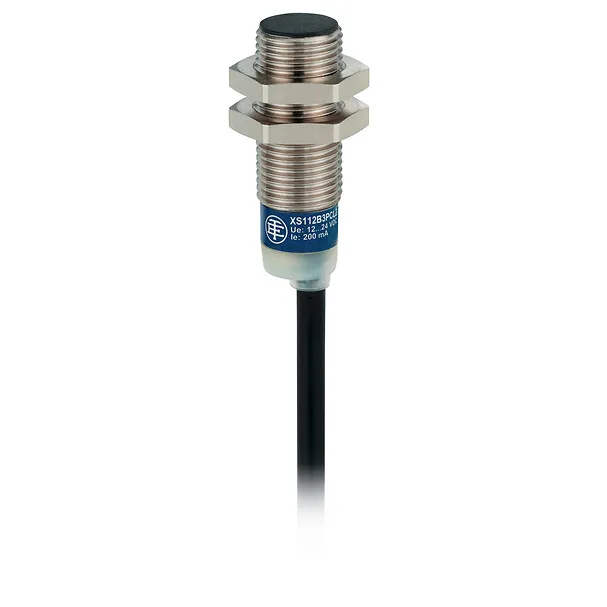

XS112B3PCL2 - Universal M12 Flush
Telemecanique Sensors XS112B3PCL2, Universal M12 Flush. Category: Cylindrical design. Request a quote for price and lead time.
- Reference:XS112B3PCL2
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:57.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Series Name
- General purpose
- Sensor Type
- Inductive proximity sensor
- Sensor Name
- XS1
Product Description
Telemecanique Sensors XS112B3PCL2 (EvrenselM12 Kesik Kafa). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main19
| Range Of Product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series Name | General purpose |
| Sensor Type | Inductive proximity sensor |
| Sensor Name | XS1 |
| Device Application | Mobile equipment |
| Sensor Design | Cylindrical M12 |
| Size | 37 mm |
| Body Type | Fixed |
| Type Of Output Signal | Discrete |
| Wiring Technique | 4-wire |
| Discrete Output Function | 1 NO + 1 NC |
| Detector Flush Mounting Acceptance | Flush mountable |
| Discrete Output Type | PNP |
| Material | Metal |
| Electrical Connection | Male remote connector M12, 4 pins |
| [Us] Rated Supply Voltage | 12...24 V DC with reverse polarity protection |
| Output Circuit Type | DC |
| Switching Capacity In MA | <= 200 mA with overload and short-circuit protection |
| IP Degree Of Protection | IP67 conforming to IEC 60529, IP65 |
Complementary16
| Enclosure Material | Nickel plated brass |
|---|---|
| Detection Face | Frontal |
| Thread Type | M12 x 1 |
| Front Material | PPS |
| Sensing Range | > 4...8 mm |
| Differential Travel | 1...15 % of Sr |
| Cable Composition | 4 x 0.22 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire Insulation Material | PVC |
| Switching Frequency | <= 2500 Hz |
| Voltage Drop | <2 V (closed) |
| Current Consumption | 0...10 mA no-load |
| Delay First Up | 5 ms |
| Delay Response | 0.1 ms |
| Marking | CE |
| Delay Recovery | 0.1 ms |
Environment3
| Product Certifications | CSA, E2, UL |
|---|---|
| Vibration Resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.6 cm |
| Package 1 Width | 12.1 cm |
| Package 1 Length | 16.6 cm |
| Package 1 Weight | 0.083 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 22 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.145 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 13 cm |
| Package 3 Width | 4.1 cm |
| Package 3 Length | 9.5 cm |
| Package 3 Weight | 0.096 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Catalogues2
Instructions8
- ENInductive proximity sensor - Quick Start - TESELEA000318_ENOpens in a new tab
- XS1N..PC410. - XS1...B3PC. - XS4P..PC410. Inductive proximity sensor - DC 4 wires version, Instruction SheetOpens in a new tab
- FRXS1 - XS4 - Détecteurs de proximité inductifs - Instruction de serviceOpens in a new tab
- ESXS1 - XS4 - Detectores de proximidad inductivos - Hoja de instruccionesOpens in a new tab
- ENXS1 - XS4 - Inductive proximity sensor - Instruction SheetOpens in a new tab
- DEXS1 - XS4 - Induktive Näherungsschalter - BedienungsanleitungOpens in a new tab
- ITXS1 - XS4 - Interrutori di prossimità induttivi - Foglio delle istruzioniOpens in a new tab
- ZHXS1 - XS4 - 电感式接近传感器 - 指示シートOpens in a new tab
Environmental Information3
Declarations2
CAD Drawings3
- Inductive proximity sensors OsiSense XS, cylindrical M12, flush mountable, metal, mm, cable - 3D CAD (stp)Opens in a new tab
- Inductive proximity sensors OsiSense XS, cylindrical M12, flush mountable, metal, mm, cable - 3D CAD (dxf)Opens in a new tab
- Inductive proximity sensors OsiSense XS, cylindrical M12, flush mountable, metal, mm, cable - 3D CAD (dxf)Opens in a new tab
