Telemecanique Sensors

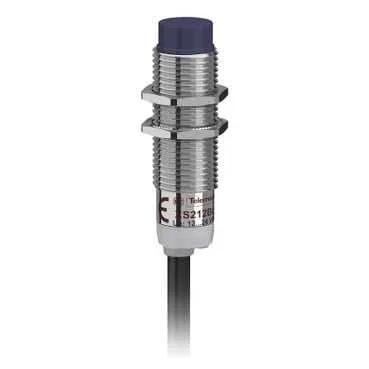

Inductive sensor, XS2, M12, brass, Sn 4 mm, PNP, NO, cable 2 m, L44 mm, 12...24 VDC, non-flush, 3 wires
Telemecanique Sensors XS212BLPAL2, Inductive sensor, XS2, M12, brass, Sn 4 mm, PNP, NO, cable 2 m, L44 mm, 12...24 VDC, non-flush, 3 wires. Category: Cylindrical design. In stock.
- Reference:XS212BLPAL2
- Manufacturer / Brand:Telemecanique Sensors
- Availability:In stock (11 pcs) ✅
- Price:28.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Series Name
- General purpose
- Sensor Type
- Inductive proximity sensor
- Sensor Name
- XS2
Product Description
The inductive proximity sensor with reference XS212BLPAL2 from Telemecanique Sensors is offered in the Inductive & Capacitive Sensors category with an M12 cylindrical design. It features nickel-plated brass enclosure material and a 4 mm nominal sensing distance. The device provides 1 NO digital output of PNP type with a 12...24 V DC supply voltage.
Technical Specifications
Main18
| Range Of Product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series Name | General purpose |
| Sensor Type | Inductive proximity sensor |
| Sensor Name | XS2 |
| Sensor Design | Cylindrical M12 |
| Size | 44 mm |
| Body Type | Fixed |
| Type Of Output Signal | Discrete |
| Wiring Technique | 3-wire |
| Discrete Output Function | 1 NO |
| Detector Flush Mounting Acceptance | Non flush mountable |
| Discrete Output Type | PNP |
| Material | Metal |
| Electrical Connection | Cable |
| [Us] Rated Supply Voltage | 12...24 V DC with reverse polarity protection |
| Output Circuit Type | DC |
| Switching Capacity In MA | <= 200 mA with overload and short-circuit protection |
| IP Degree Of Protection | IP67 conforming to IEC 60529 |
Complementary16
| Enclosure Material | Nickel plated brass |
|---|---|
| ISO Thread | M12 x 1 |
| Detection Face | Frontal |
| Front Material | PBT |
| Sensing Range | > 2.5...4 mm |
| Differential Travel | 1...15 % of Sr |
| Cable Composition | 3 x 0.14 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire Insulation Material | PVC |
| Switching Frequency | <= 1200 Hz |
| Voltage Drop | <2 V (closed) |
| Current Consumption | <= 10 mA no-load |
| Delay First Up | 15 ms |
| Delay Response | 0.15 ms |
| Marking | CE |
| Delay Recovery | 0.4 ms |
Environment3
| Product Certifications | CSA, UL |
|---|---|
| Vibration Resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2.8 cm |
| Package 1 Width | 11.5 cm |
| Package 1 Length | 11.6 cm |
| Package 1 Weight | 0.07 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 22 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.633 kg |
| Unit Type Of Package 3 | BAG |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 4.3 cm |
| Package 3 Width | 9.6 cm |
| Package 3 Length | 13 cm |
| Package 3 Weight | 0.099 kg |
| Indivisible Sale Quantity | 1 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Datasheets1
Environmental Information3
Declarations3
- XS1••BF/BH/BJ/BK/BL… and XS2••BL… inductive proximity switches with discrete output - CMim declaration of conformityOpens in a new tab
- XS1••BF/BH/BJ/BK/BL… and XS2••BL… inductive proximity switches with discrete output - EU declaration of conformityOpens in a new tab
- XS1••BF/BH/BJ/BK/BL… and XS2••BL… inductive proximity switches with discrete output - UK declaration of conformityOpens in a new tab

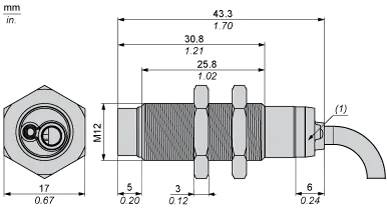

CAD Drawings3
- Inductive proximity sensors OsiSense XS, cylindrical M12, non flush mountable, metal, Sn4 mm, cable - 3D CAD (dxf)Opens in a new tab
- Inductive proximity sensors OsiSense XS, cylindrical M12, non flush mountable, metal, Sn4 mm, cable - 3D CAD (dxf)Opens in a new tab
- Inductive proximity sensors OsiSense XS, cylindrical M12, non flush mountable, metal, Sn4 mm, cable - 3D CAD (dwg)Opens in a new tab
