Telemecanique Sensors

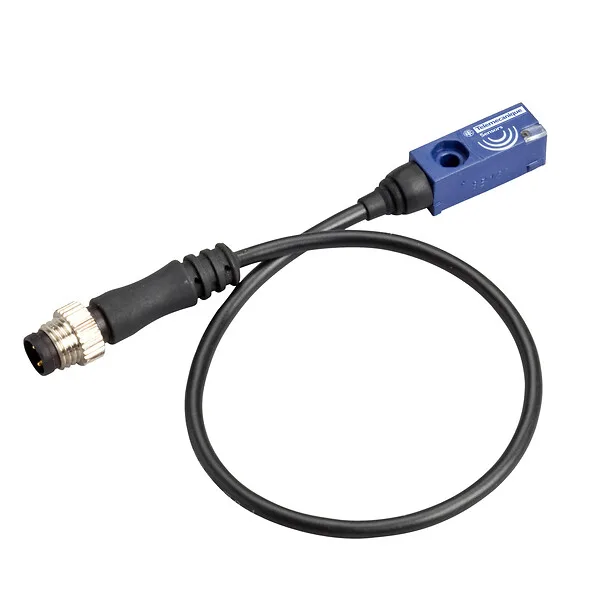

XS7J1A1PAL01M8 - DDPI FORM F SN=2,5MM NO PNP OPT FLUSH 10-3
Telemecanique Sensors XS7J1A1PAL01M8, DDPI FORM F SN=2,5MM NO PNP OPT FLUSH 10-3. Category: Rectangular design. Request a quote for price and lead time.
- Reference:XS7J1A1PAL01M8
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:80.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Series Name
- General purpose
- Sensor Type
- Inductive proximity sensor
- Device Application
- Not applicable
Product Description
Telemecanique Sensors XS7J1A1PAL01M8 (DDPI FORMF SN=2,5MMNO PNP OPT FLUSH 10-3). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main17
| Range Of Product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series Name | General purpose |
| Sensor Type | Inductive proximity sensor |
| Device Application | Not applicable |
| Sensor Name | XS7 |
| Sensor Design | Flat form 8 x 22 x 8 |
| Size | 8 mm |
| Body Type | Fixed |
| Enclosure Material | PBT |
| Type Of Output Signal | Discrete |
| Wiring Technique | 3-wire |
| Discrete Output Function | 1 NO |
| Electrical Connection | Remote male connector M8, 3 pins |
| Discrete Output Type | PNP |
| [Us] Rated Supply Voltage | 12...24 V DC with reverse polarity protection |
| IP Degree Of Protection | IP67 conforming to IEC 60529 |
| Switching Capacity In MA | <= 100 mA DC with overload and short-circuit protection |
Complementary16
| Detector Flush Mounting Acceptance | Flush mountable |
|---|---|
| Material | Plastic |
| Output Circuit Type | DC |
| Detection Face | Frontal |
| Front Material | PBT |
| Differential Travel | 1...15 % of Sr |
| Wire Insulation Material | PVC |
| Sensing Range | > 0...2.5 mm |
| Status LED | Output state: 1 LED (yellow) |
| Switching Frequency | <= 2000 Hz |
| Current Consumption | <= 10 mA no-load |
| Voltage Drop | <2 V (closed) |
| Delay First Up | 5 ms |
| Marking | CE |
| Delay Response | 0.1 ms |
| Delay Recovery | 0.1 ms |
Environment3
| Product Certifications | C-Tick |
|---|---|
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration Resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.2 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Weight | 0.025 kg |
| Package 1 Length | 6.6 cm |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 22 |
| Package 2 Height | 30 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.0605 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 4.2 cm |
| Package 3 Width | 9.5 cm |
| Package 3 Length | 6.6 cm |
| Package 3 Weight | 0.025 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Datasheets1
Catalogues2
Leaflets2
Environmental Information3
Declarations2
CAD Drawings3
- Inductive proximity sensors OsiSense XS, flat form 8X22X8, flush mountable, plastic, Sn2.5 mm, DC - 3D CAD (dxf)Opens in a new tab
- Inductive proximity sensors OsiSense XS, flat form 8X22X8, flush mountable, plastic, Sn2.5 mm, DC - 3D CAD (stp)Opens in a new tab
- Inductive proximity sensors OsiSense XS, flat form 8X22X8, flush mountable, plastic, Sn2.5 mm, DC - 3D CAD (dxf)Opens in a new tab
