Telemecanique Sensors

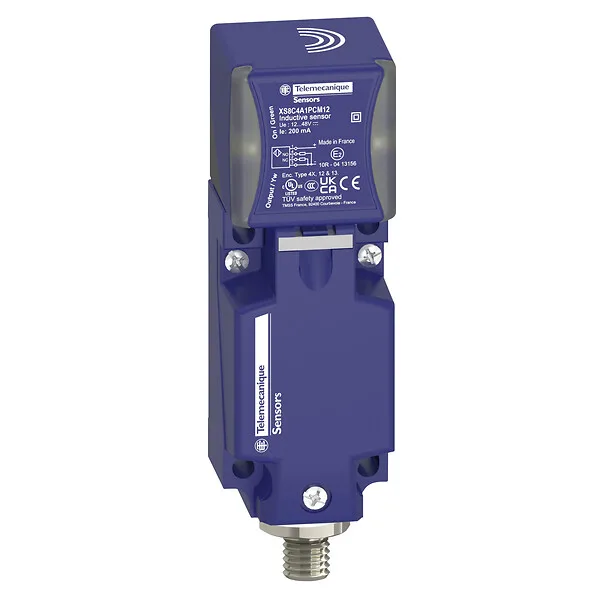

XS8C4A1PCM12 - INDUCTIVE SENSOR RECT 40X40X117 12 48V D
Telemecanique Sensors XS8C4A1PCM12, INDUCTIVE SENSOR RECT 40X40X117 12 48V D. Category: Rectangular design. Request a quote for price and lead time.
- Reference:XS8C4A1PCM12
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:119.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Series Name
- General purpose
- Sensor Type
- Inductive proximity sensor
- Device Application
- Mobile equipment
Product Description
Telemecanique Sensors XS8C4A1PCM12 (INDUCTIVE SENSOR RECT 40X40X117 12 48V D). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main17
| Range Of Product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series Name | General purpose |
| Sensor Type | Inductive proximity sensor |
| Device Application | Mobile equipment |
| Sensor Name | XS8 |
| Sensor Design | Form 40 x 40 x 117 |
| Size | 117 mm |
| Body Type | Fixed |
| Enclosure Material | PBT |
| Type Of Output Signal | Discrete |
| Wiring Technique | 4-wire |
| Discrete Output Function | 1 NO + 1 NC |
| Electrical Connection | Male connector M12, 4 pins |
| Discrete Output Type | PNP |
| [Us] Rated Supply Voltage | 12...48 V DC with reverse polarity protection |
| IP Degree Of Protection | IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Switching Capacity In MA | <= 200 mA with overload and short-circuit protection |
Complementary18
| Detector Flush Mounting Acceptance | Flush mountable |
|---|---|
| Material | Plastic |
| Output Circuit Type | DC |
| Detection Face | 5 positions turret head |
| Front Material | PBT |
| Safety Level | SIL 2 conforming to IEC 61508, PL = d conforming to ISO 13849-1, SILCL 2 conforming to IEC 62061 |
| Repeat Accuracy | <= 3% of Sr |
| Safety Reliability Data | MTTFd = 1546 years, PFHd = 7.4E-8 1/h, SFF = 92 %, DC = 75 % with appropriate safety controller |
| Differential Travel | 3...15% of Sr |
| Sensing Range | > 15...40 mm |
| Status LED | Supply on: 1 LED (green), output state: 1 LED (yellow) |
| Switching Frequency | <= 300 Hz |
| Current Consumption | 0...15 mA no-load |
| Voltage Drop | <2 V (closed) |
| Delay First Up | 7.5 ms |
| Marking | CE |
| Delay Response | 1.2 ms |
| Delay Recovery | 1.8 ms |
Environment3
| Product Certifications | CCC, CSA, E2, TÜV, UL |
|---|---|
| Vibration Resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.6 cm |
| Package 1 Width | 4.6 cm |
| Package 1 Weight | 0.275 kg |
| Package 1 Length | 14 cm |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 14 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.148 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 5 cm |
| Package 3 Width | 14.5 cm |
| Package 3 Length | 5 cm |
| Package 3 Weight | 0.274 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Instructions1
Environmental Information3
Declarations3
- XS7/8/9C2… and XS7/8/9C4… inductive proximity switches with discrete output - CMim declaration of conformityOpens in a new tab
- XS7/8/9C2… and XS7/8/9C4… inductive proximity switches with discrete output - EU declaration of conformityOpens in a new tab
- XS7/8/9C2… and XS7/8/9C4… inductive proximity switches with discrete output - UK declaration of conformityOpens in a new tab
CAD Drawings3
- Inductive proximity sensors OsiSense XS, Form 40 x 117, flush mountable, plastic, mm, connector - 3D CAD (dxf)Opens in a new tab
- Inductive proximity sensors OsiSense XS, Form 40 x 117, flush mountable, plastic, mm, connector - 3D CAD (dxf)Opens in a new tab
- Inductive proximity sensors OsiSense XS, Form 40 x 117, flush mountable, plastic, mm, connector - 3D CAD (dwg)Opens in a new tab
