Telemecanique Sensors

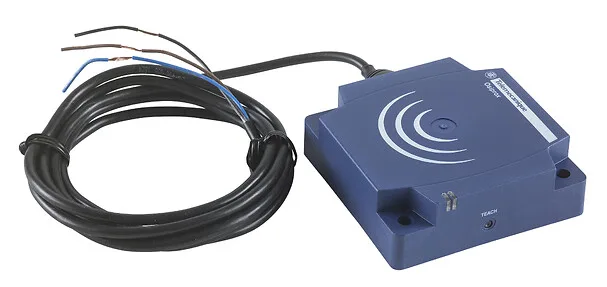

XS8D1A1MAL2 - DDPI FORMD SN=60MM NO UNI OSI 20-264
Telemecanique Sensors XS8D1A1MAL2, DDPI FORMD SN=60MM NO UNI OSI 20-264. Category: Rectangular design. Request a quote for price and lead time.
- Reference:XS8D1A1MAL2
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:334.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Series Name
- General purpose
- Sensor Type
- Inductive proximity sensor
- Device Application
- Not applicable
Product Description
Telemecanique Sensors XS8D1A1MAL2 (DDPI FORMD SN=60MM NO UNI OSI 20-264). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main16
| Range Of Product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series Name | General purpose |
| Sensor Type | Inductive proximity sensor |
| Device Application | Not applicable |
| Sensor Name | XS8 |
| Sensor Design | Flat form 80 x 80 x 26 |
| Size | 26 mm |
| Body Type | Fixed |
| Enclosure Material | PBT |
| Type Of Output Signal | Discrete |
| Wiring Technique | 2-wire |
| Discrete Output Function | 1 NO |
| Electrical Connection | Cable |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| IP Degree Of Protection | IP68 double insulation conforming to IEC 60529 |
| Switching Capacity In MA | 5...200 mA DC, 5...300 mA AC |
Complementary17
| Detector Flush Mounting Acceptance | Non flush mountable |
|---|---|
| Material | Plastic |
| Output Circuit Type | AC/DC |
| Detection Face | Frontal |
| Front Material | PBT |
| Differential Travel | 1...15 % of Sr |
| Wire Insulation Material | PVC |
| Cable Composition | 2 x 0.34 mm² |
| Sensing Range | > 40...60 mm |
| Switching Frequency | <= 150 Hz |
| Residual Current | 1.5 mA open state |
| Current Consumption | <= 10 mA no-load |
| Voltage Drop | <5.5 V (closed) |
| Delay First Up | 15 ms |
| Marking | CE |
| Delay Response | 0.3 ms |
| Delay Recovery | 6 ms |
Environment3
| Product Certifications | CCC, CSA, Ecolab, UL |
|---|---|
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration Resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 13 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Weight | 0.428 kg |
| Package 1 Length | 6.6 cm |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 14 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 6.307 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 6.6 cm |
| Package 3 Width | 13 cm |
| Package 3 Length | 9.5 cm |
| Package 3 Weight | 0.427 kg |
| Indivisible Sale Quantity | 1 |
