Telemecanique Sensors

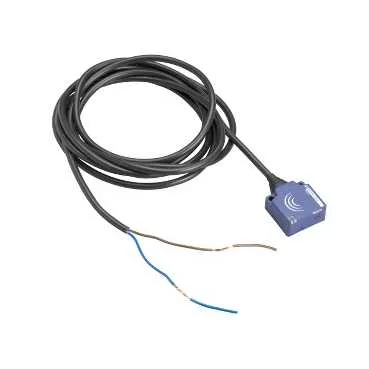

Inductive sensor, XS8, 26x26x13 mm, PBT, Sn 15 mm, PNP, NO, cable 2 m, form E flat, 12...24 VDC
Telemecanique Sensors XS8E1A1PAL2, Inductive sensor, XS8, 26x26x13 mm, PBT, Sn 15 mm, PNP, NO, cable 2 m, form E flat, 12...24 VDC. Category: Rectangular design. In stock.
- Reference:XS8E1A1PAL2
- Manufacturer / Brand:Telemecanique Sensors
- Availability:In stock (3 pcs) ✅
- Price:212.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Series Name
- General purpose
- Sensor Type
- Inductive proximity sensor
- Device Application
- Not applicable
Product Description
The Telemecanique Sensors inductive proximity sensor with reference XS8E1A1PAL2 features a 26x26x13 mm flat design. You can review the technical specifications of this product, provided with a PBT enclosure material and a 2 m cable length, and request a price quote through ÜÇ-EL Elektrik.
Technical Specifications
Main17
| Range Of Product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series Name | General purpose |
| Sensor Type | Inductive proximity sensor |
| Device Application | Not applicable |
| Sensor Name | XS8 |
| Sensor Design | Flat form 26 x 26 x 13 |
| Size | 13 mm |
| Body Type | Fixed |
| Enclosure Material | PBT |
| Type Of Output Signal | Discrete |
| Wiring Technique | 3-wire |
| Discrete Output Function | 1 NO |
| Electrical Connection | Cable |
| Discrete Output Type | PNP |
| [Us] Rated Supply Voltage | 12...24 V DC with reverse polarity protection |
| IP Degree Of Protection | IP68 double insulation conforming to IEC 60529 |
| Switching Capacity In MA | <= 100 mA DC with overload and short-circuit protection |
Complementary17
| Detector Flush Mounting Acceptance | Non flush mountable |
|---|---|
| Material | Plastic |
| Output Circuit Type | DC |
| Detection Face | Frontal |
| Front Material | PBT |
| Differential Travel | 1...15 % of Sr |
| Wire Insulation Material | PVC |
| Cable Composition | 3 x 0.34 mm² |
| Sensing Range | 8...15 mm |
| Switching Frequency | <= 2000 Hz |
| Residual Current | 1.5 mA open state |
| Current Consumption | <= 10 mA no-load |
| Voltage Drop | <2 V (closed) |
| Delay First Up | 10 ms |
| Marking | CE |
| Delay Response | 0.3 ms |
| Delay Recovery | 0.8 ms |
Environment3
| Product Certifications | CSA, Ecolab, UL |
|---|---|
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration Resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.2 cm |
| Package 1 Width | 9.6 cm |
| Package 1 Weight | 0.104 kg |
| Package 1 Length | 13.2 cm |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 44 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.984 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 13.2 cm |
| Package 3 Width | 4.2 cm |
| Package 3 Length | 9.6 cm |
| Package 3 Weight | 0.1 kg |
| Indivisible Sale Quantity | 1 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
