Telemecanique Sensors

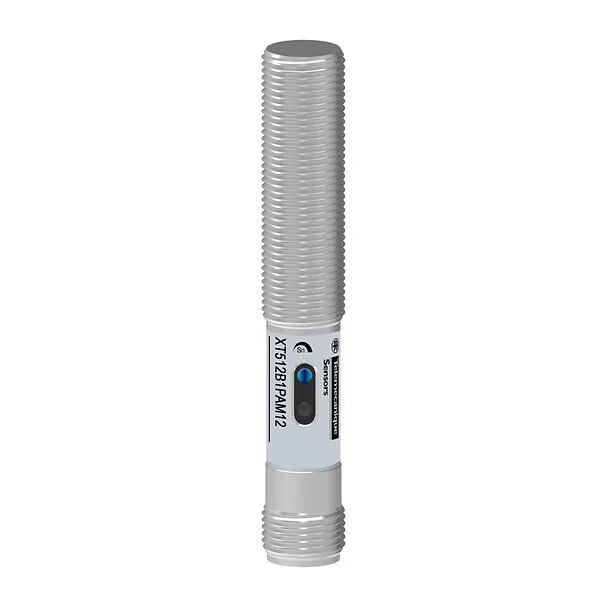

XT512B1PBM12 - CAPACITIVE SENSOR CYLINDRICAL M12 12 24V
Telemecanique Sensors XT512B1PBM12, CAPACITIVE SENSOR CYLINDRICAL M12 12 24V. Category: Compact range. Request a quote for price and lead time.
- Reference:XT512B1PBM12
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:121.00 EUR (Request a quote)
Key Specifications
- Sensor Type
- Capacitive proximity sensor
- Product Specific Application
- Detection of insulated or conductive materials
- Sensor Name
- XT5
- Sensor Design
- Cylindrical M12
Product Description
Telemecanique Sensors XT512B1PBM12 (CAPACITIVE SENSOR CYLINDRICAL M12 12 24V). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main17
| Sensor Type | Capacitive proximity sensor |
|---|---|
| Product Specific Application | Detection of insulated or conductive materials |
| Sensor Name | XT5 |
| Sensor Design | Cylindrical M12 |
| Size | 75 mm |
| Body Type | Fixed |
| Detector Flush Mounting Acceptance | Flush mountable |
| Material | Nickel copper alloy |
| Enclosure Material | Nickel copper alloy |
| Type Of Output Signal | Discrete |
| Wiring Technique | 3-wire |
| Discrete Output Function | 1 NC |
| Output Circuit Type | DC |
| Electrical Connection | Male connector M12, 4 pins |
| [Us] Rated Supply Voltage | 24 V DC with reverse polarity protection |
| Delay Response | 15 ms |
| IP Degree Of Protection | IP67 conforming to IEC 60529, IP65 conforming to IEC 60529 |
Complementary13
| ISO Thread | M12 x 1 |
|---|---|
| Detection Face | Frontal |
| Differential Travel | < 0.2 x Sr |
| Repeat Accuracy | < 0.1 x Sr |
| Status LED | Output state indication: 1 LED (yellow) |
| Residual Current | 0.1 mA open state |
| Switching Frequency | <= 40 Hz |
| Voltage Drop | <2.5 V (closed) |
| Current Consumption | < 15 mA |
| Delay First Up | 300 ms |
| Delay Recovery | 15 ms |
| Marking | CE |
| Setting-up | Sensitivity by potentiometer |
Environment5
| Standards | IEC 60947-5-2, UL 61010-1 |
|---|---|
| Product Certifications | cULus |
| Vibration Resistance | 10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical Insulation Class | Class III conforming to IEC 61140 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units13
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 1.8 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 11 cm |
| Package 1 Weight | 0.036 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 30 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.453 kg |
| Indivisible Sale Quantity | 1 |
