Telemecanique Sensors

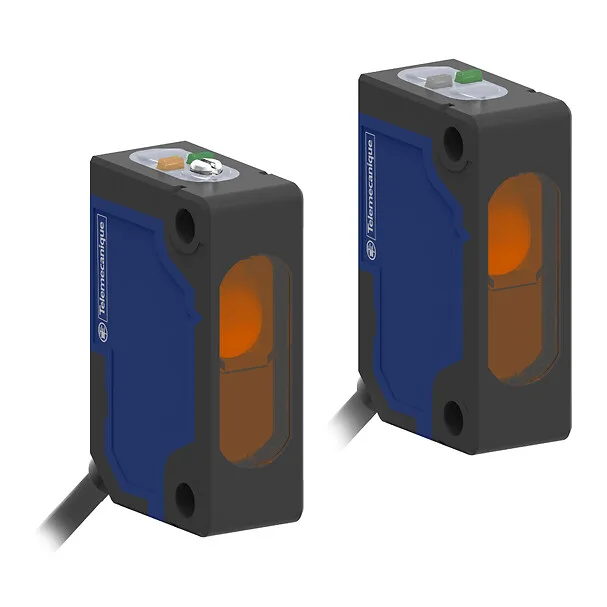

XUM2APXBL2 - Thru-beam miniature body photoelectric
Telemecanique Sensors XUM2APXBL2, Thru-beam miniature body photoelectric. Category: Through-beam. Request a quote for price and lead time.
- Reference:XUM2APXBL2
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:112.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUM
- Series Name
- General purpose single mode
- Enclosure Material
- PBT
Product Description
Telemecanique Sensors XUM2APXBL2 (Karşılıklı minyatür gövde fotoelektrik). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main19
| Range Of Product | Telemecanique Photoelectric sensors XU |
|---|---|
| Sensor Name | XUM |
| Series Name | General purpose single mode |
| Enclosure Material | PBT |
| Electronic Sensor Type | Photo-electric sensor |
| Sensor Design | Miniature |
| Material | Plastic |
| Electrical Connection | Cable |
| Wiring Technique | 3-wire |
| Detection System | Thru beam |
| Kit Composition | Transmitter + receiver XUM2AKXBL2T + XUM2APXBL2R |
| Discrete Output Function | 1 NO or 1 NC programmable |
| [Us] Rated Supply Voltage | 12...24 V DC with reverse polarity protection |
| Type Of Output Signal | Discrete |
| Supply Circuit Type | DC |
| Switching Frequency | 1000 Hz |
| Discrete Output Type | PNP |
| Delay Response | 0.5 ms |
| Switching Capacity In MA | <= 100 mA with overload and short-circuit protection |
Complementary8
| Setting-up | Sensitivity by potentiometer |
|---|---|
| Current Consumption | 20 mA for transmitter, 20 mA for receiver |
| Output Type | Solid state |
| Lens Material | PMMA |
| Sensing Range | 0...30 m |
| Maximum Voltage Drop | <2 V |
| Delay First Up | 100 ms |
| Delay Recovery | 0.5 ms |
Environment3
| Shock Resistance | 100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27 |
|---|---|
| IP Degree Of Protection | IP67 conforming to IEC 60529, IP65 conforming to IEC 60529 |
| Vibration Resistance | 9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units13
| Unit Type Of Package 1 | S04 |
|---|---|
| Number Of Units In Package 1 | 80 |
| Package 1 Height | 30 cm |
| Package 1 Width | 40 cm |
| Package 1 Length | 60 cm |
| Package 1 Weight | 79920 kg |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 80 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 9.2 kg |
| Indivisible Sale Quantity | 1 |
