Telemecanique Sensors

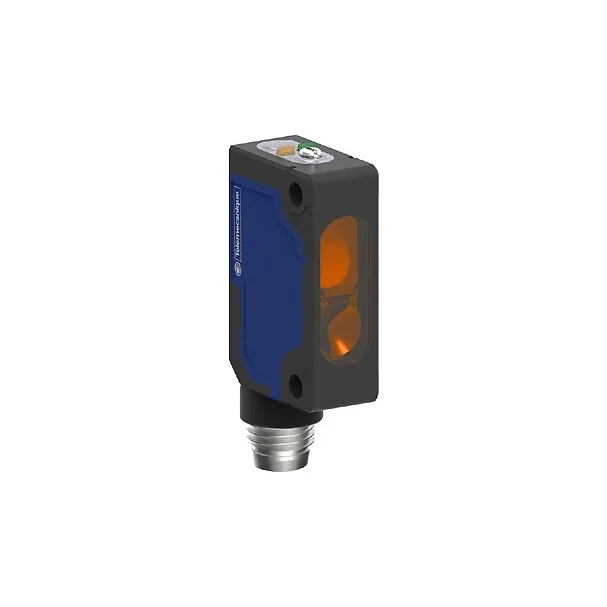

XUM6APYBM8 - Miniature photoelectric sensor with IO-Link
Telemecanique Sensors XUM6APYBM8, Miniature photoelectric sensor with IO-Link. Request a quote for price and lead time.
- Reference:XUM6APYBM8
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:94.00 EUR (Request a quote)
Key Specifications
- Sensor Name
- XUM
- Connector Type
- M8
- Enclosure Material
- PBT
- Electronic Sensor Type
- Photo-electric sensor
Product Description
Telemecanique Sensors XUM6APYBM8 (Minyatür gövde fotoelektrik sensör IO-Link bağlantılı). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main15
| Sensor Name | XUM |
|---|---|
| Series Name | Application material handling, Application packaging |
| Connector Type | M8 |
| Enclosure Material | PBT |
| Electronic Sensor Type | Photo-electric sensor |
| Sensor Design | Miniature |
| Design | Miniature |
| Electrical Connection | 4 pins |
| Detection System | Diffuse |
| Emission | Red LED diffuse |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Type Of Output Signal | Discrete |
| Supply Circuit Type | DC |
| Discrete Output Type | PNP/NPN autodetect |
| Delay Response | 0.5 ms |
Complementary11
| [Ue] Rated Operational Voltage | 24 V |
|---|---|
| Setting-up | Sensitivity adjustment by potentiometer, sensitivity by IO-Link |
| Cover Material | Polycarbonate PC |
| Current Consumption | <= 30 mA |
| Switching Capacity In MA | 100 mA |
| Lens Material | PMMA |
| Switching Frequency | <= 1000 Hz |
| Sensing Range | 0.01...1.1m |
| Status LED | power LED color: green output LED color: yellow |
| Delay First Up | 300 ms |
| Delay Recovery | 0.5 ms |
Environment4
| Shock Resistance | 100 gn (duration = 11ms) for for every axis |
|---|---|
| IP Degree Of Protection | IP65 conforming to EN/IEC 60529 IP67 conforming to EN/IEC 60529 |
| Vibration Resistance | 9 gn, (f= 10-500Hz) for every axis conforming to CE conforming to cULus conforming to UKCA |
| Interference Protection | With |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov |
|---|
Packing Units12
| Number Of Units In Package 1 | 1 |
|---|---|
| Package 1 Height | 1.5 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 9 cm |
| Package 1 Weight | 0.013 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 120 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.067 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Instructions8
- FRXUM4A.XB. / XUM5A.XB. / XUM6A.XB. Capteurs photoélectriques IO-LINK - Boîtier miniature, Instruction de serviceOpens in a new tab
- ZHXUM4A.XB. / XUM5A.XB. / XUM6A.XB. IO-LINK 光电传感器-小型外壳 , 说明书Opens in a new tab
- XUM4A.XB. / XUM5A.XB. / XUM6A.XB. IO-LINK 光電センサー-ミニチュアハウジング , 指示シートOpens in a new tab
- DEXUM4A.XB. / XUM5A.XB. / XUM6A.XB. Optoelektronischer Sensor IO-LINK - Miniaturgehäuse, BedienungsanleitungOpens in a new tab
- ENXUM4A.XB. / XUM5A.XB. / XUM6A.XB. Photo-electric sensors IO-LINK - Miniature design, Instruction SheetOpens in a new tab
- ESXUM4A.XB. / XUM5A.XB. / XUM6A.XB. Sensores fotoeléctricos IO-LINK - Formato miniatura, hoja de instruccionesOpens in a new tab
- PTXUM4A.XB. / XUM5A.XB. / XUM6A.XB. Sensores fotoelétricos IO-LINK - Miniatura, folha de instruçõesOpens in a new tab
- ITXUM4A.XB. / XUM5A.XB. / XUM6A.XB. Sensori fotoelettrici IO-LINK - Formato miniaturizzato, Foglio delle istruzioniOpens in a new tab
Environmental Information3
Declarations1
Other Documents18
- DEIODD&data table_Proximity sensor_After2026_W06_DE (zip)Opens in a new tab
- ENIODD & data table Proximity sensor After2026 W06 EN (zip)Opens in a new tab
- ESIODD&data table_Proximity sensor_After2026_W06_ES (zip)Opens in a new tab
- FRIODD&data table_Proximity sensor_After2026_W06_FR (zip)Opens in a new tab
- ITIODD&data table_Proximity sensor_After2026_W06_IT (zip)Opens in a new tab
- IODD&data table_Proximity sensor_After2026_W06_JP (zip)Opens in a new tab
- PTIODD&data table_Proximity sensor_After2026_W06_PT (zip)Opens in a new tab
- ZHIODD&data table_Proximity sensor_After2026_W06_ZH (zip)Opens in a new tab
- FRXUB/XUN - XU_IO Link - Capteur à réflexion directe - Guide de programmationOpens in a new tab
- ESXUB/XUN - XU_IO Link de luz difusa - Guía de programaciónOpens in a new tab
- XUB/XUN - XU_IO Link Diffuse - Guia de programaçãoOpens in a new tab
- DEXUB/XUN - XU_IO Link Diffuse - ProgrammierhandbuchOpens in a new tab
- ENXUB/XUN - XU IO-Link Diffuse - Programming GuideOpens in a new tab
- XUB/XUN - XU_IO Link Diffuse - 编程指南Opens in a new tab
- ITXUB/XUN - XU_IO Link Diffusore - Guida alla programmazioneOpens in a new tab
- XUB/XUN - XU_IO Link 拡散型 - プログラミングガイドOpens in a new tab
- Cybersecurity Product InformationOpens in a new tab
- Cybersecurity Support NoticeOpens in a new tab
