Telemecanique Sensors

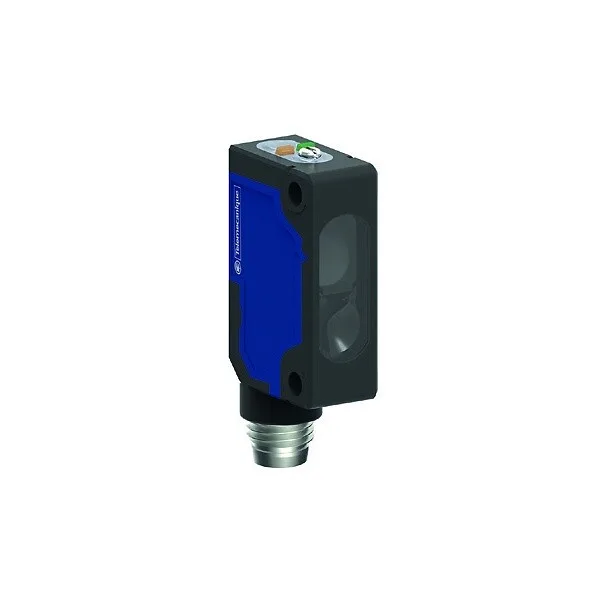

XUM9APYBM8 - Miniature photoelectric sensor with IO-Link connection
Telemecanique Sensors XUM9APYBM8, Miniature photoelectric sensor with IO-Link connection. Category: Polarized retro-reflective. Request a quote for price and lead time.
- Reference:XUM9APYBM8
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:102.00 EUR (Request a quote)
Key Specifications
- Sensor Name
- XUM
- Connector Type
- M8
- Enclosure Material
- PBT
- Electronic Sensor Type
- Détecteur photo-électrique polarisé
Product Description
Telemecanique Sensors XUM9APYBM8 (Minyatür gövde fotoelektrik sensör IO-Link bağlantılı). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main15
| Sensor Name | XUM |
|---|---|
| Series Name | Application material handling, Application packaging |
| Connector Type | M8 |
| Enclosure Material | PBT |
| Electronic Sensor Type | Détecteur photo-électrique polarisé |
| Sensor Design | Miniature |
| Design | Miniature |
| Electrical Connection | 4 pins |
| Detection System | Polarised reflex |
| Emission | Red LED polarised reflex |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Type Of Output Signal | Discrete |
| Supply Circuit Type | DC |
| Discrete Output Type | PNP/NPN autodetect |
| Delay Response | 0.5 ms |
Complementary11
| [Ue] Rated Operational Voltage | 24 V |
|---|---|
| Setting-up | Sensitivity adjustment by potentiometer, sensitivity by IO-Link |
| Cover Material | Polycarbonate PC |
| Current Consumption | <= 30 mA |
| Switching Capacity In MA | 100 mA |
| Lens Material | PMMA |
| Switching Frequency | <= 1000 Hz |
| Sensing Range | 0...8 m |
| Status LED | power LED color: green output LED color: yellow |
| Delay First Up | 300 ms |
| Delay Recovery | 0.5 ms |
Environment4
| Shock Resistance | 100 gn (duration = 11ms) for for every axis |
|---|---|
| IP Degree Of Protection | IP65 conforming to EN/IEC 60529 IP67 conforming to EN/IEC 60529 |
| Vibration Resistance | 9 gn, (f= 10-500Hz) for every axis conforming to CE conforming to cULus conforming to UKCA |
| Interference Protection | With |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 1.5 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 0.013 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 120 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.05 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 1920 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 40.8 kg |
| Indivisible Sale Quantity | 1 |
