Telemecanique Sensors

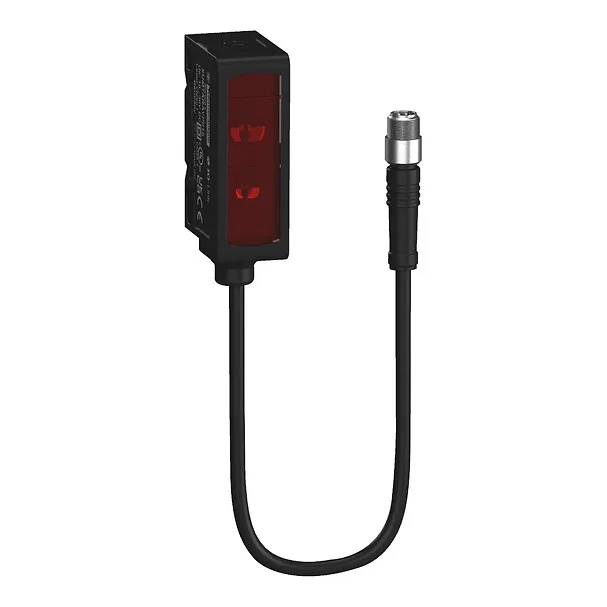

XUMTARAYP015 - Photoelectric sensor
Telemecanique Sensors XUMTARAYP015, Photoelectric sensor. Request a quote for price and lead time.
- Reference:XUMTARAYP015
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:360.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUM
- Series Name
- Application packaging
- Product Specific Application
- Detection of transparent object
Product Description
Telemecanique Sensors XUMTARAYP015 (PHOTOELECTRIC SENSOR). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main17
| Range Of Product | Telemecanique Photoelectric sensors XU |
|---|---|
| Sensor Name | XUM |
| Series Name | Application packaging |
| Product Specific Application | Detection of transparent object |
| Enclosure Material | ABS |
| Electronic Sensor Type | Photo-electric sensor |
| Sensor Design | Miniature |
| Material | Plastic |
| Electrical Connection | 1 pre-cabled male connector M12, 4 pins |
| Detection System | Reflex |
| Emission | Red reflex |
| Discrete Output Function | 1 NO or 1 NC programmable |
| [Us] Rated Supply Voltage | 12...24 V DC with reverse polarity protection |
| Type Of Output Signal | Discrete |
| Supply Circuit Type | DC |
| Discrete Output Type | IOLINK, PNP/NPN autodetect |
| Delay Response | 500 MICROSECOND |
Complementary10
| Setting-up | Sensitivity by IO-Link, sensitivity adjustment with teach mode |
|---|---|
| Current Consumption | <= 30 mA no-load |
| Output Type | Solid state |
| Switching Capacity In MA | <= 100 mA (overload and short-circuit protection) |
| Lens Material | PMMA |
| Add On Output | Without, 100 mA |
| Status LED | 1 LED (green) for power ON, 1 LED (orange) for output state |
| Sensing Range | > 0...2 m |
| Delay First Up | 300 ms |
| Delay Recovery | 300 ms |
Environment1
| IP Degree Of Protection | IP67 conforming to IEC 60529, IP69K conforming to DIN 40050-9 |
|---|
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.1 cm |
| Package 1 Width | 3.1 cm |
| Package 1 Length | 6.1 cm |
| Package 1 Weight | 0.034 kg |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 30 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.255 kg |
| Unit Type Of Package 3 | S02 |
| Number Of Units In Package 3 | 30 |
| Package 3 Height | 15 cm |
| Package 3 Width | 15 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 1.255 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Datasheets1
Leaflets8
- DETESELEA000073DE_TransparentSensorsOpens in a new tab
- ENTESELEA000073EN_TransparentSensorsOpens in a new tab
- ESTESELEA000073ES_TransparentSensorsOpens in a new tab
- FRTESELEA000073FR_TransparentSensorsOpens in a new tab
- ITTESELEA000073IT_TransparentSensorsOpens in a new tab
- NLTESELEA000073NL_TransparentSensorsOpens in a new tab
- PTTESELEA000073PT_TransparentSensorsOpens in a new tab
- TRTESELEA000073TR_TransparentSensorsOpens in a new tab
Instructions8
- XUMTARAY - Capteurs photoélectriques - Boîtier miniature - Instruction de serviceOpens in a new tab
- XUMTARAY - Optoelektronischer Sensor - Miniaturgehäuse - BedienungsanleitungOpens in a new tab
- XUMTARAY - Photo-electric sensors - Miniature design - Instruction SheetOpens in a new tab
- XUMTARAY - Sensores fotoeléctricos - Formato miniatura - Hoja de instruccionesOpens in a new tab
- XUMTARAY - Sensores fotoelétricos - Miniatura - Folha de instruçõesOpens in a new tab
- XUMTARAY - Sensori fotoelettrici - Formato miniaturizzato - Foglio delle istruzioniOpens in a new tab
- XUMTARAY - 光电传感器-小型外壳 - 指示シートOpens in a new tab
- XUMTARAY - 光電センサー-ミニチュアハウジング - 说明书Opens in a new tab
Environmental Information3
Declarations3
- XUM•A••X... and XUM•A••Y... photoelectric proximity switches - EU declaration of conformityOpens in a new tab
- XUM•A••X... and XUM•A••Y... photoelectric proximity switches - UK declaration of conformityOpens in a new tab
- XUMTARAY… photoelectric proximity switches - IO-Link declaration of conformityOpens in a new tab
CAD Drawings1
Other Documents18
- DEIODD&data table_XUMTARAY_After2023_W02_DE (zip)Opens in a new tab
- ENIODD&data table_XUMTARAY_After2023_W02_EN (zip)Opens in a new tab
- ESIODD&data table_XUMTARAY_After2023_W02_ES (zip)Opens in a new tab
- FRIODD&data table_XUMTARAY_After2023_W02_FR (zip)Opens in a new tab
- ITIODD&data table_XUMTARAY_After2023_W02_IT (zip)Opens in a new tab
- IODD&data table_XUMTARAY_After2023_W02_JP (zip)Opens in a new tab
- PTIODD&data table_XUMTARAY_After2023_W02_PT (zip)Opens in a new tab
- ZHIODD&data table_XUMTARAY_After2023_W02_ZH (zip)Opens in a new tab
- DEIODD&data table_XUMTARAY_After2026_W06_DE (zip)Opens in a new tab
- ENIODD&data table_XUMTARAY_After2026_W06_EN (zip)Opens in a new tab
- ESIODD&data table_XUMTARAY_After2026_W06_ES (zip)Opens in a new tab
- FRIODD&data table_XUMTARAY_After2026_W06_FR (zip)Opens in a new tab
- ITIODD&data table_XUMTARAY_After2026_W06_IT (zip)Opens in a new tab
- IODD&data table_XUMTARAY_After2026_W06_JP (zip)Opens in a new tab
- PTIODD&data table_XUMTARAY_After2026_W06_PT (zip)Opens in a new tab
- ZHIODD&data table_XUMTARAY_After2026_W06_ZH (zip)Opens in a new tab
- Cybersecurity Product InformationOpens in a new tab
- Cybersecurity Support NoticeOpens in a new tab
