Automation module: standard for vertical mount holder
Schneider XVBC12, Automation module: standard for vertical mount holder. Category: Harmony XVB. Not for sale; no price or quote is offered for this product.
- Reference:XVBC12
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Harmony XVB
- Accessory / Separate Part Designation
- Fixing plate for mounting on a vertical surface
- Accessory / Separate Part Type
- Fixing plate
- Accessory / Separate Part Category
- Mounting and fixing accessories
Product Description

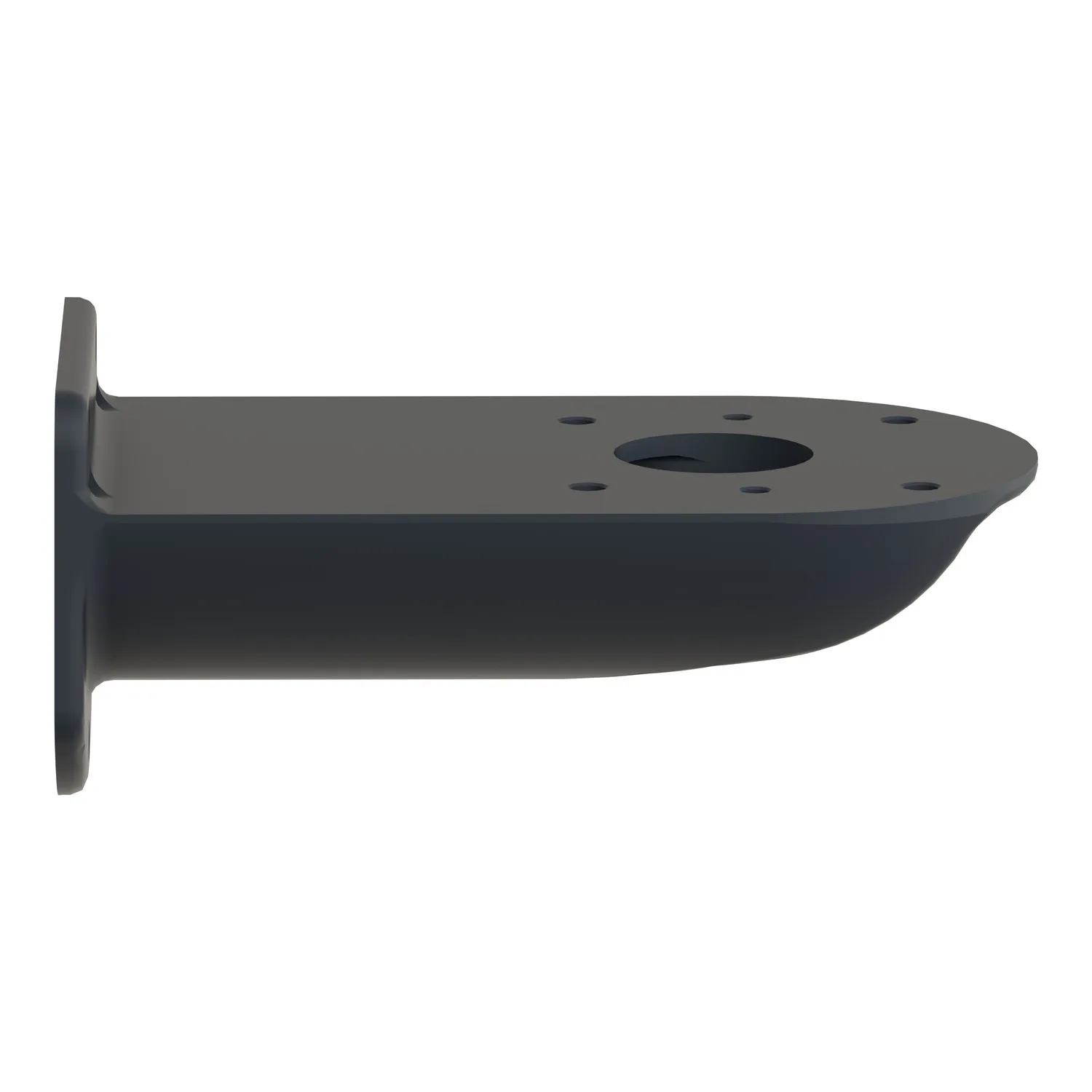

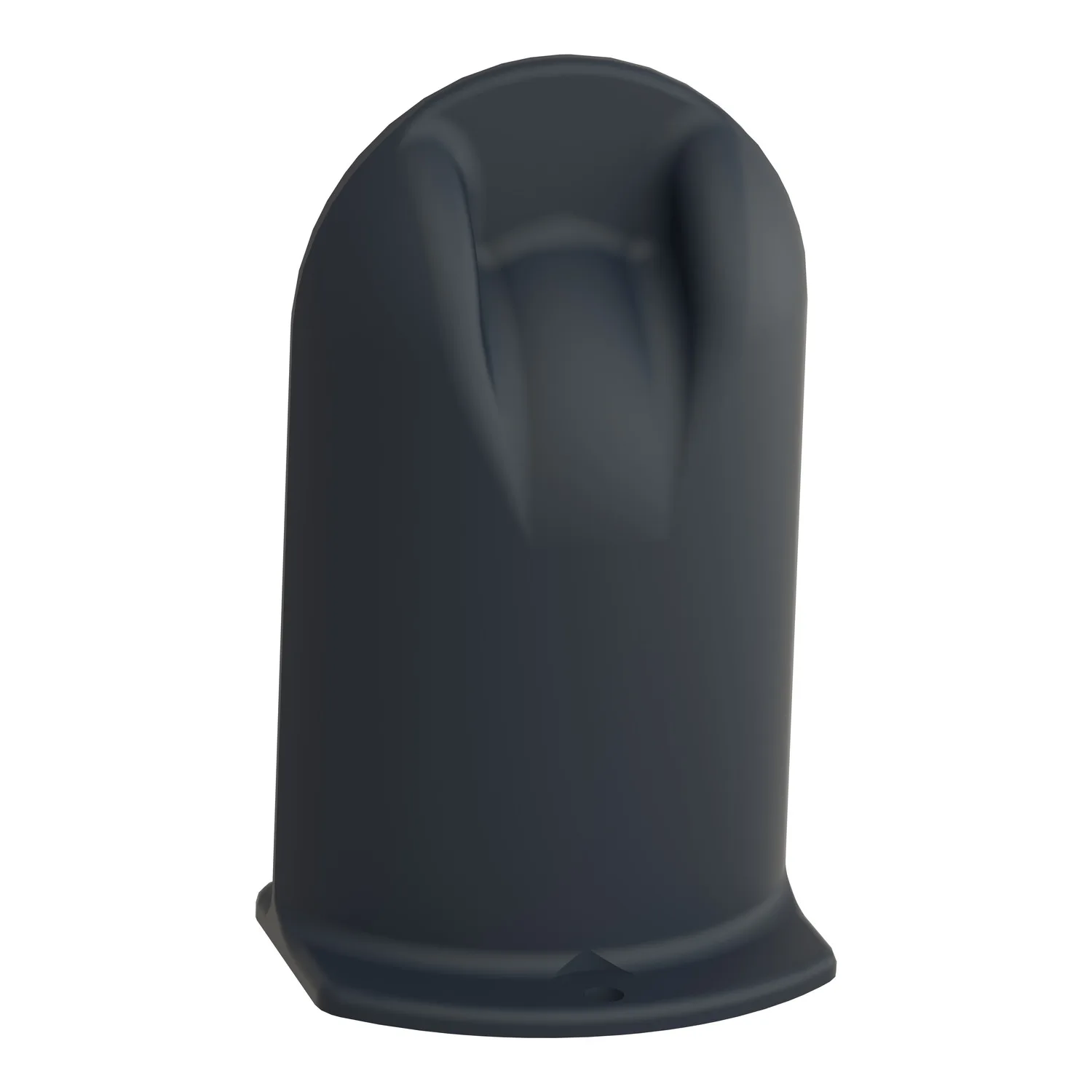

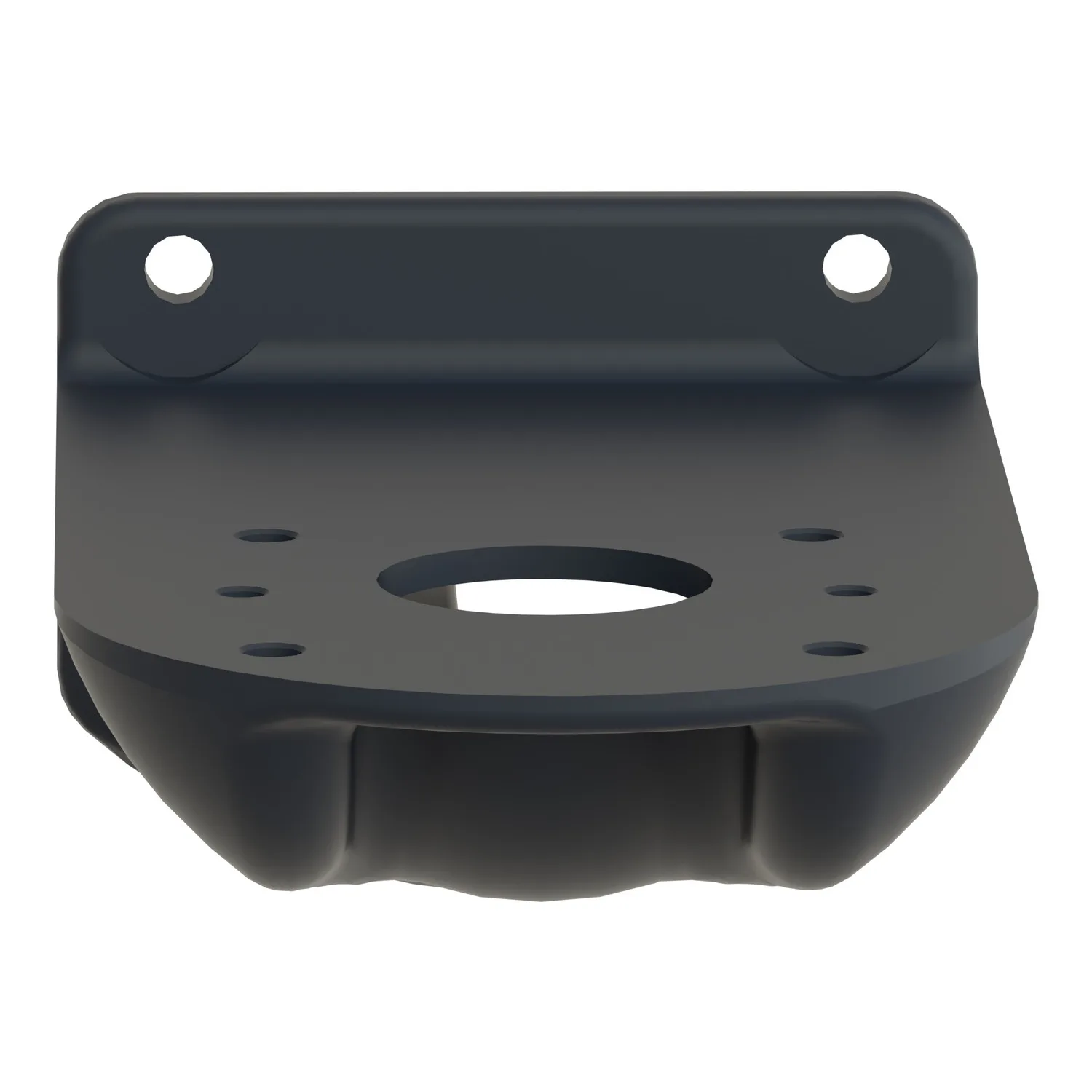

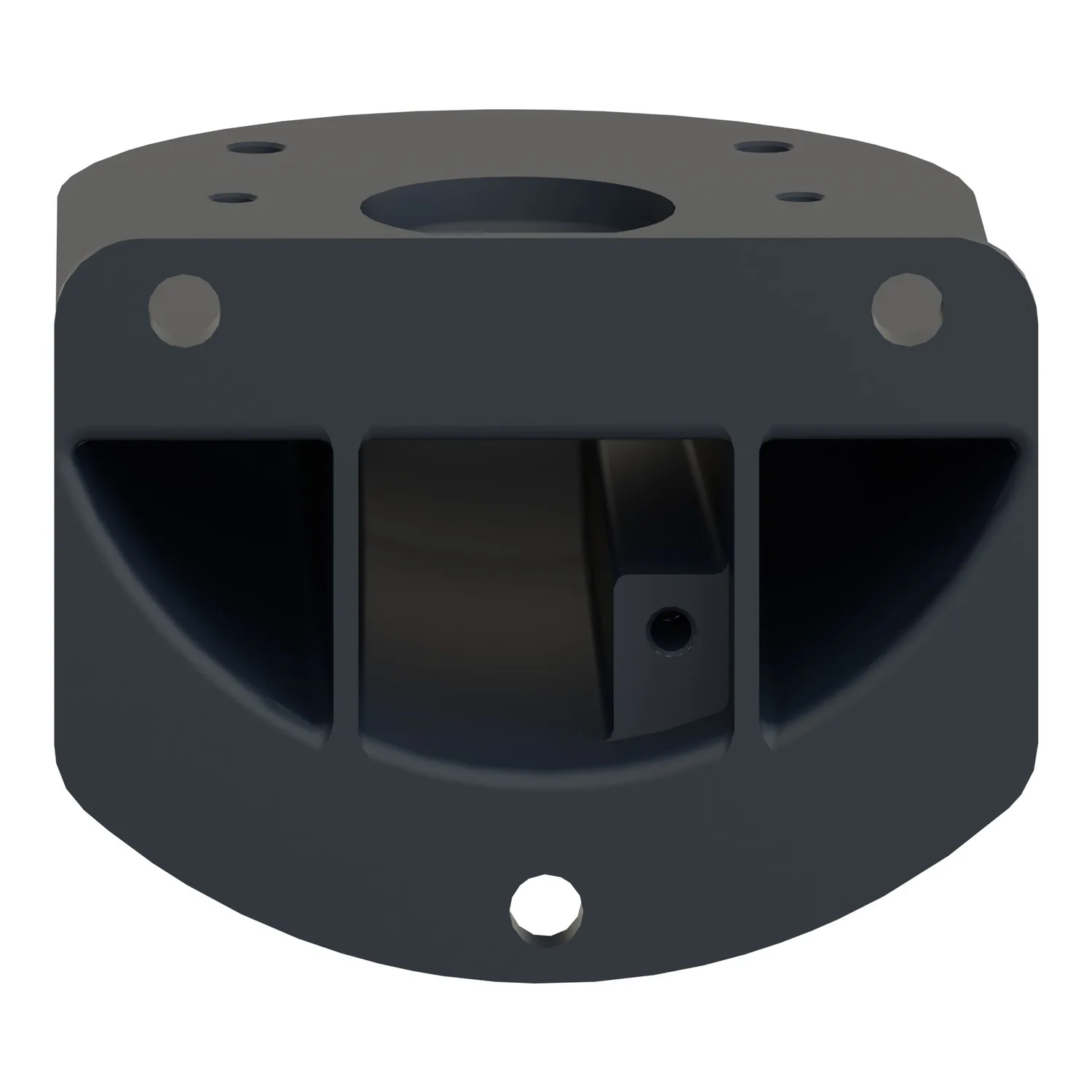

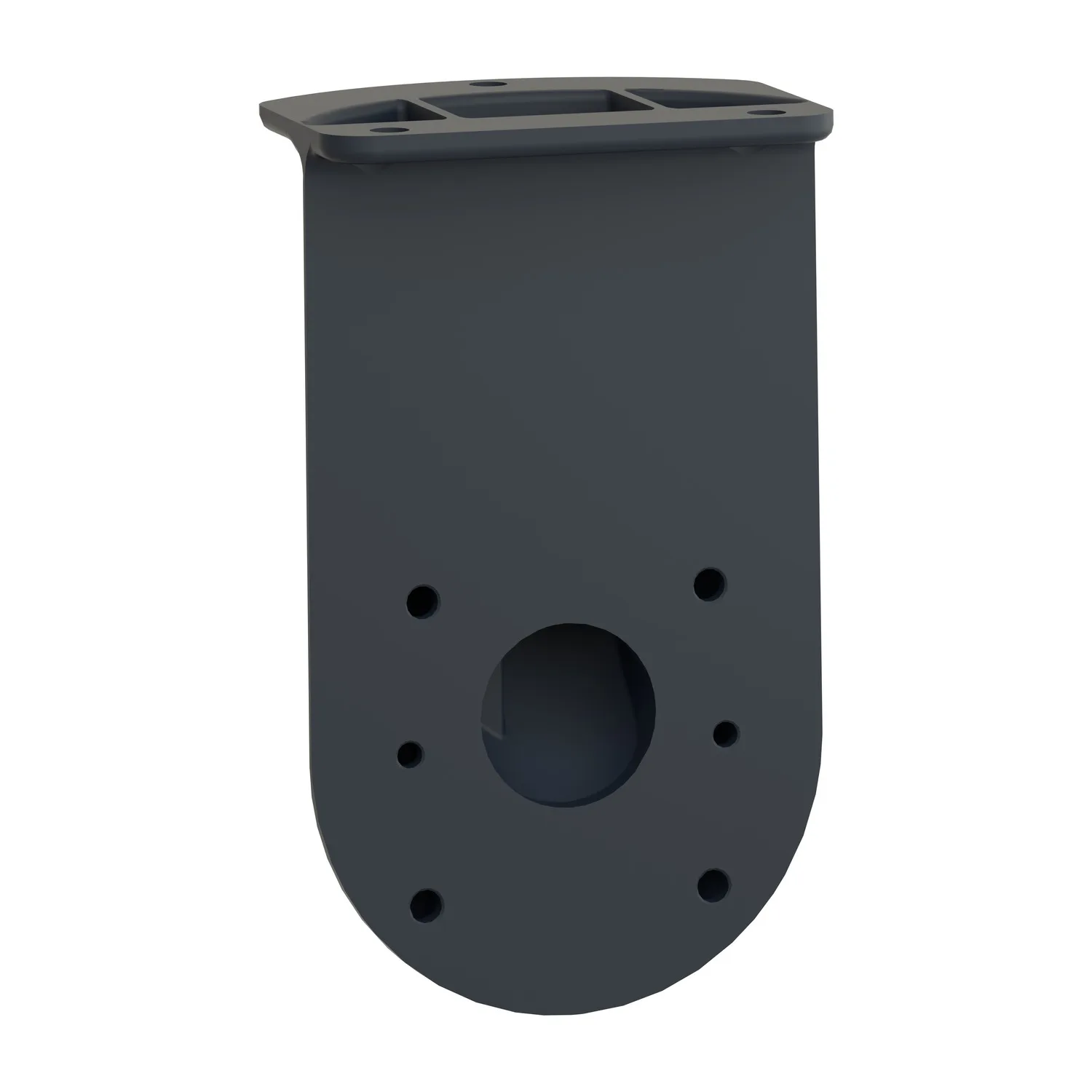

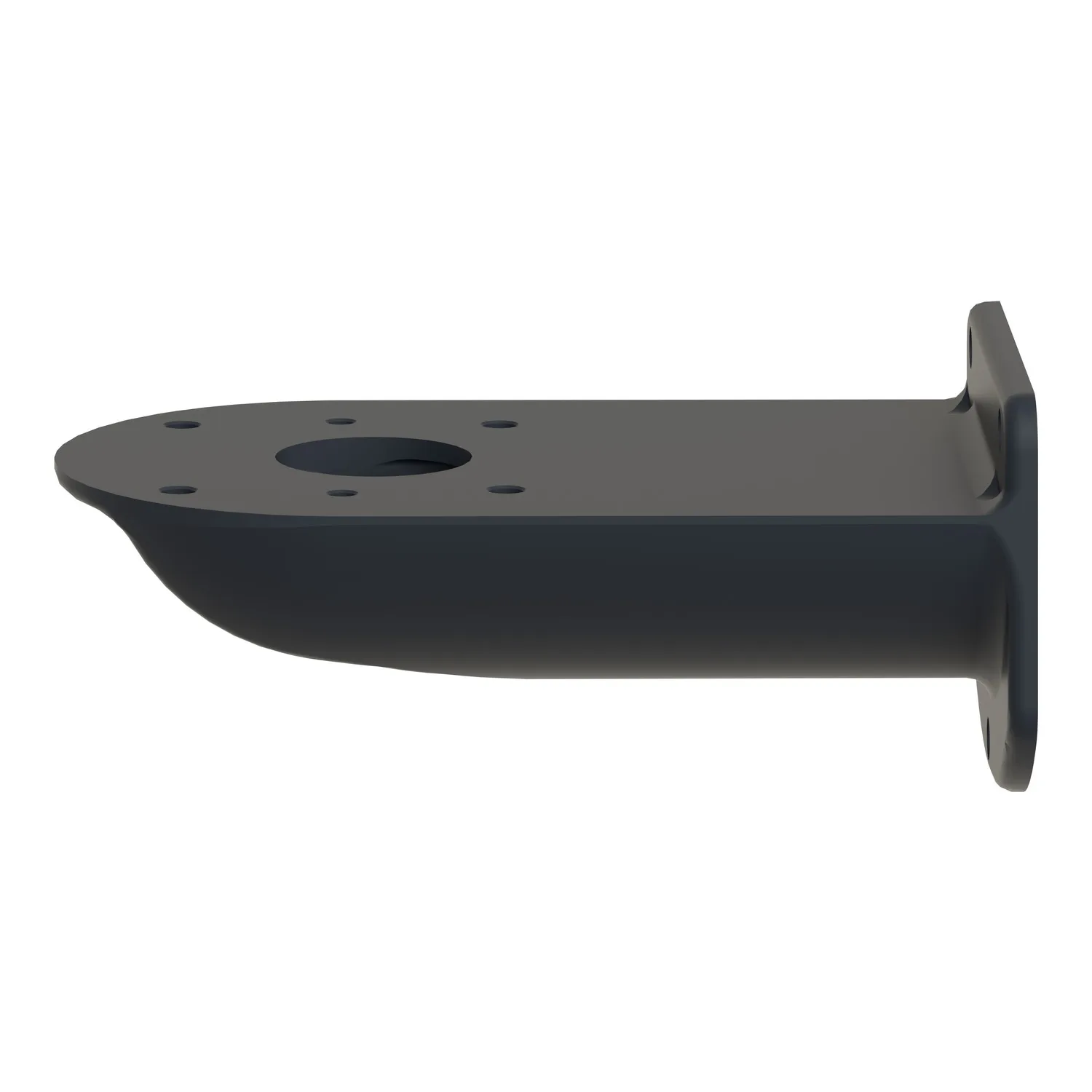

This Harmony XVB fixing plate is made of zamak. This black fixing plate is designed as a mounting and fixing accessory for mounting on vertical surface. It allows fast and easy assembly to your illuminated indicator banks via direct mounting on base unit. It is made of zamak and it has a light weight. It is compatible with XVBZ01 and XVBZ0. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. • 3 types of light source: 10 Watt incandescent bulb, built-in high-efficiency LEDs, 5 and 10-joule discharge tube
Key Features
- Fully flexible and interchangeable construction of up to 5 lens units (six colors of light lens unit)
- Connector with removable base, axial, or side cable entry, immediate assembly, and fixing using a locking ring
- 100,000 hours of maintenance-free lighting thanks to "LED Protected" technology
- High degree of protection(IP66) and Shock resistence(lK05)
Technical Specifications
Main8
| Range Of Product | Harmony XVB |
|---|---|
| Accessory / Separate Part Designation | Fixing plate for mounting on a vertical surface |
| Accessory / Separate Part Type | Fixing plate |
| Accessory / Separate Part Category | Mounting and fixing accessories |
| Product Compatibility | XVBC0.; XVBC11 |
| Accessory / Separate Part Destination | Illuminated indicator bank |
| Colour | Black |
| Material | Zamak |
Complementary2
| Mounting Support | Direct mounting on base unit; On fixing base |
|---|---|
| Net Weight | 0.38 kg |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 7.0 cm |
| Package 1 Length | 12.2 cm |
| Package 1 Weight | 377.0 g |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.995 kg |
| Unit Type Of Package 3 | S02 |
| Number Of Units In Package 3 | 20 |
| Package 3 Height | 15.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 8.075 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
