Schneider

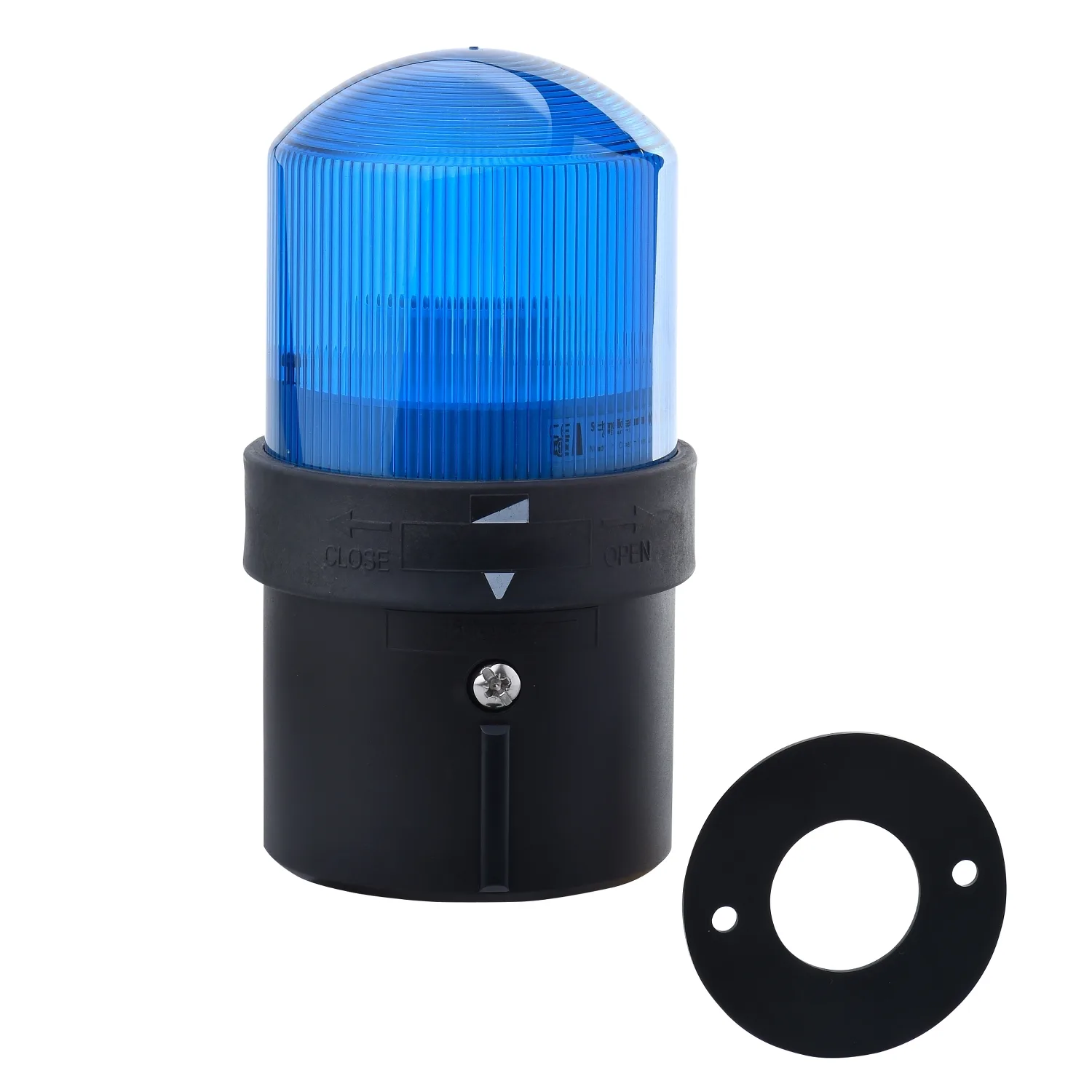

Complete beacon, Harmony XVB Universal, Ø 70 mm tower light, steady, blue, IP65, 230 V
Not for sale
Schneider XVBL0M6, Complete beacon, Harmony XVB Universal, Ø 70 mm tower light, steady, blue, IP65, 230 V. Category: Harmony XVB. Not for sale; no price or quote is offered for this product.
- Reference:XVBL0M6
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Harmony XVB Universal
- Product Or Component Type
- Complete beacon
- Signalling Type
- Steady
- Mounting Diameter
- 70 mm
Product Description
This illuminated complete beacon is designed as lighting accessory for tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Technical Specifications
Main10
| Range Of Product | Harmony XVB Universal |
|---|---|
| Product Or Component Type | Complete beacon |
| Beacon Or Indicator Bank Unit Type | Base unit direct or tube fixing; Illuminated unit |
| Signalling Type | Steady |
| Mounting Diameter | 70 mm |
| Component Name | XVBL |
| Material | Glass reinforced polyamide: base unit; Polycarbonate: illuminated unit |
| Light Source | Integral LED, blue |
| Bulb Type | Protected LED |
| [Us] Rated Supply Voltage | 230 V AC |
Complementary10
| Connections - Terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
|---|---|
| [Ui] Rated Insulation Voltage | 250 V conforming to IEC 60947-1 |
| Nominal Voltage Limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| Current Consumption | < 17 mA AC |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV conforming to IEC 60947-1 |
| CAD Overall Width | 70 mm |
| CAD Overall Height | 139 mm |
| CAD Overall Depth | 70 mm |
| Terminals Description ISO N°1 | (COM-1)PW; (GND)GROUND |
| Net Weight | 0.27 kg |
Environment8
| Pollution Degree | 2 |
|---|---|
| Product Certifications | CCC; EAC; CSA C22-2 No 14; UL 508 |
| Standards | IEC 60947-5-1 |
| Protective Treatment | TC |
| Ambient Air Temperature For Storage | -40…70 °C |
| Electrical Shock Protection Class | Class I on support tube conforming to IEC 61140; Class II on base unit conforming to IEC 61140 |
| IP Degree Of Protection | IP65 on fixing base XVBZ0. conforming to IEC 60529; IP66 on base unit conforming to IEC 60529 |
| NEMA Degree Of Protection | UL type 4X conforming to UL (indoor) |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 14.600 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 276.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.732 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 96 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 37.856 kg |
Logistical informations1
| Country Of Origin | CZ |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
