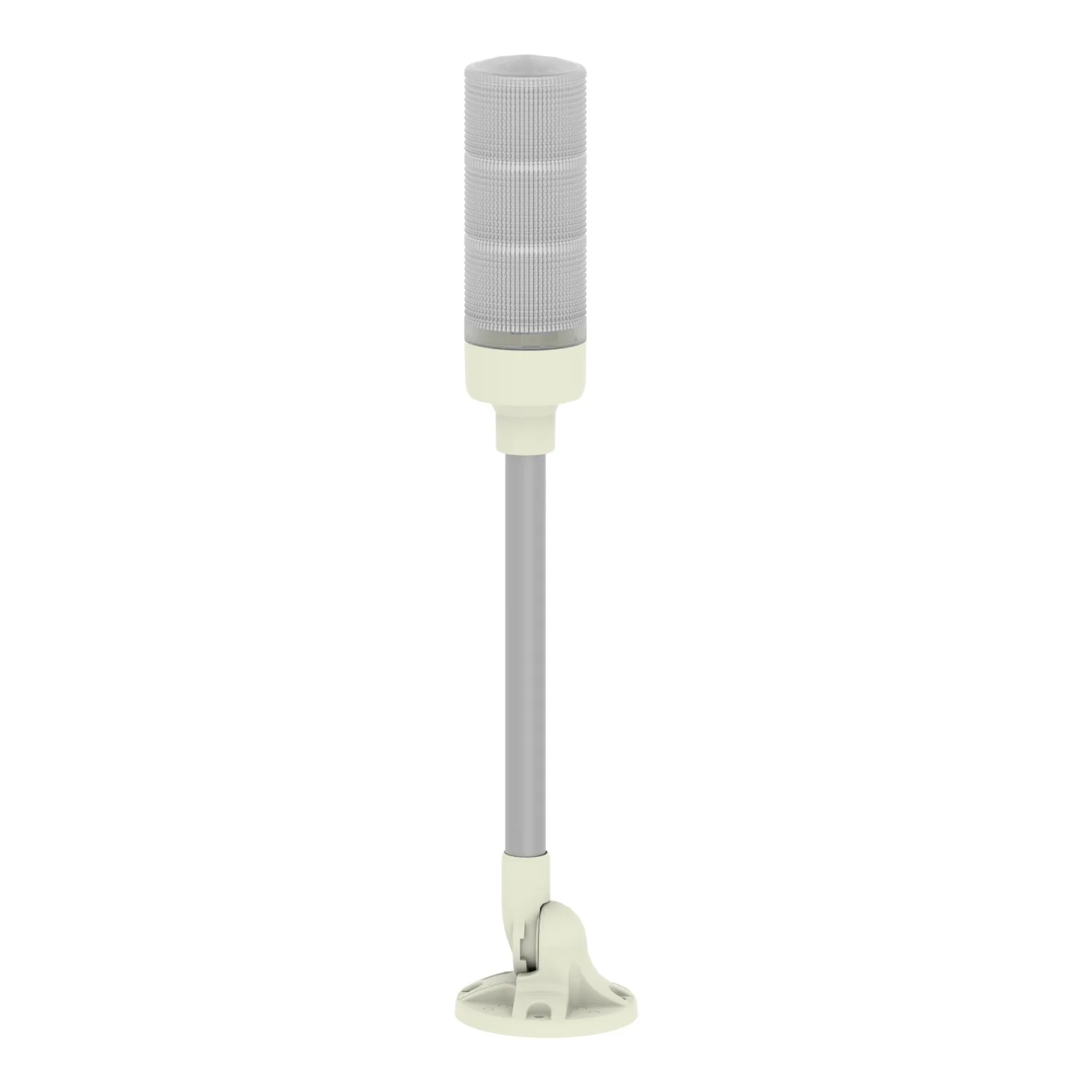

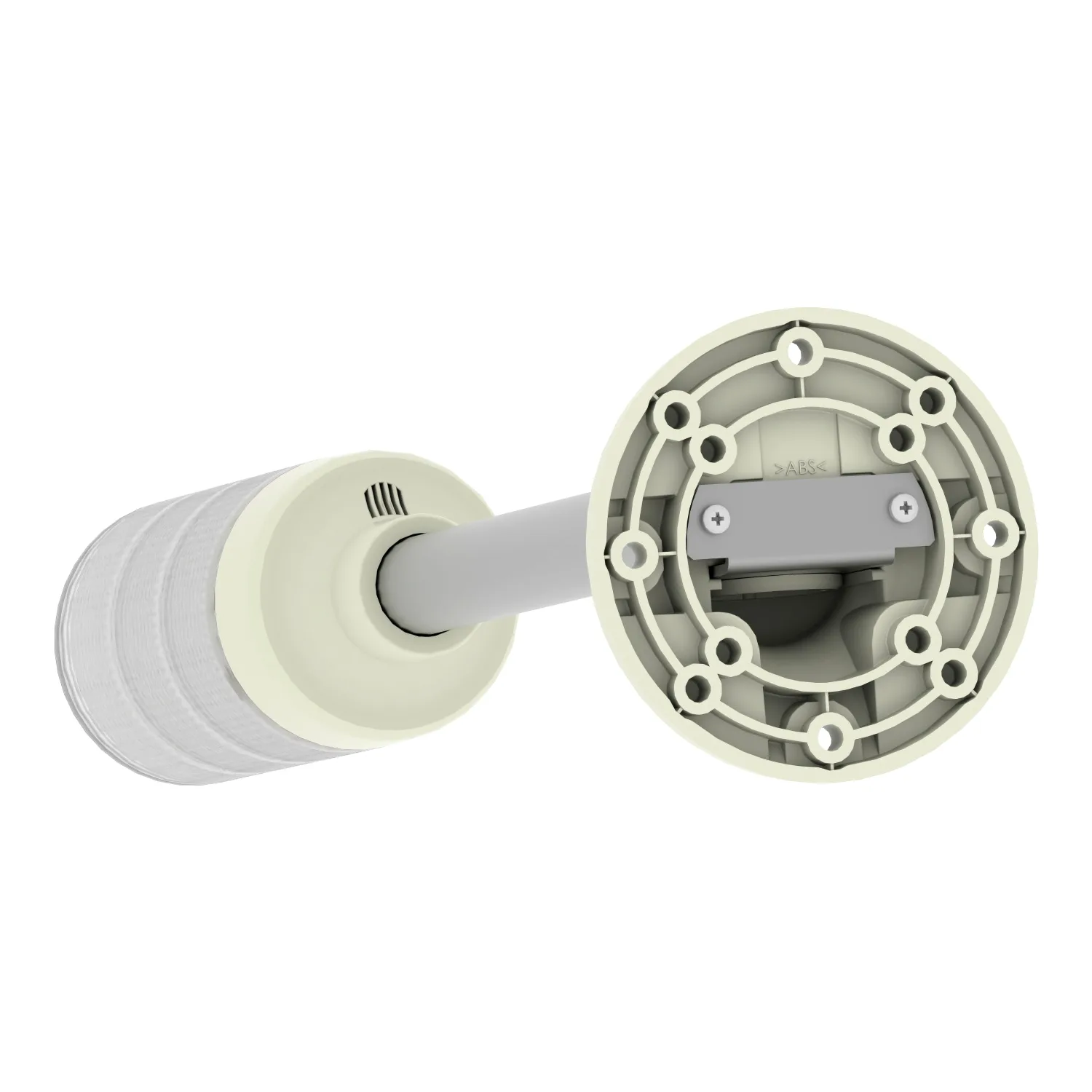

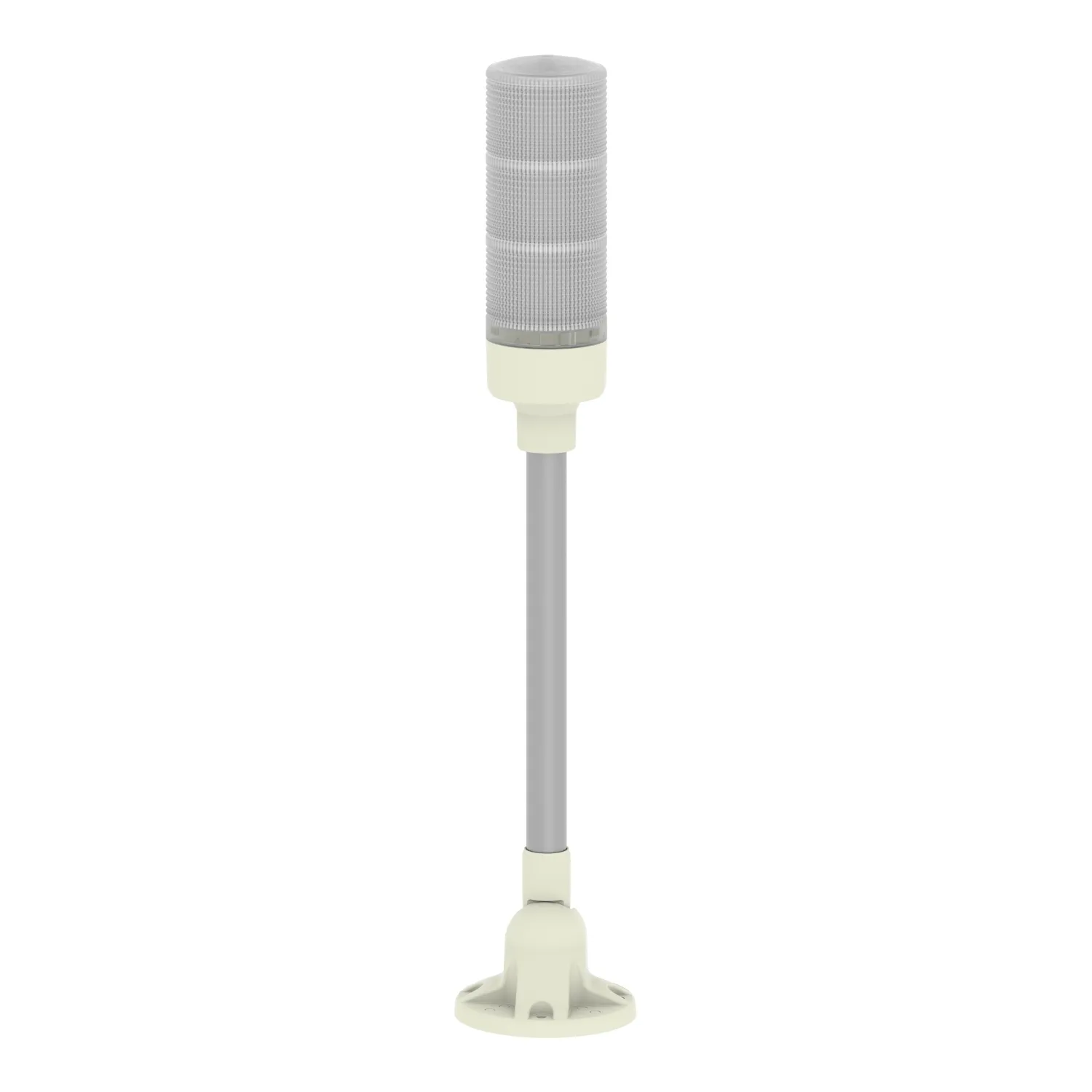

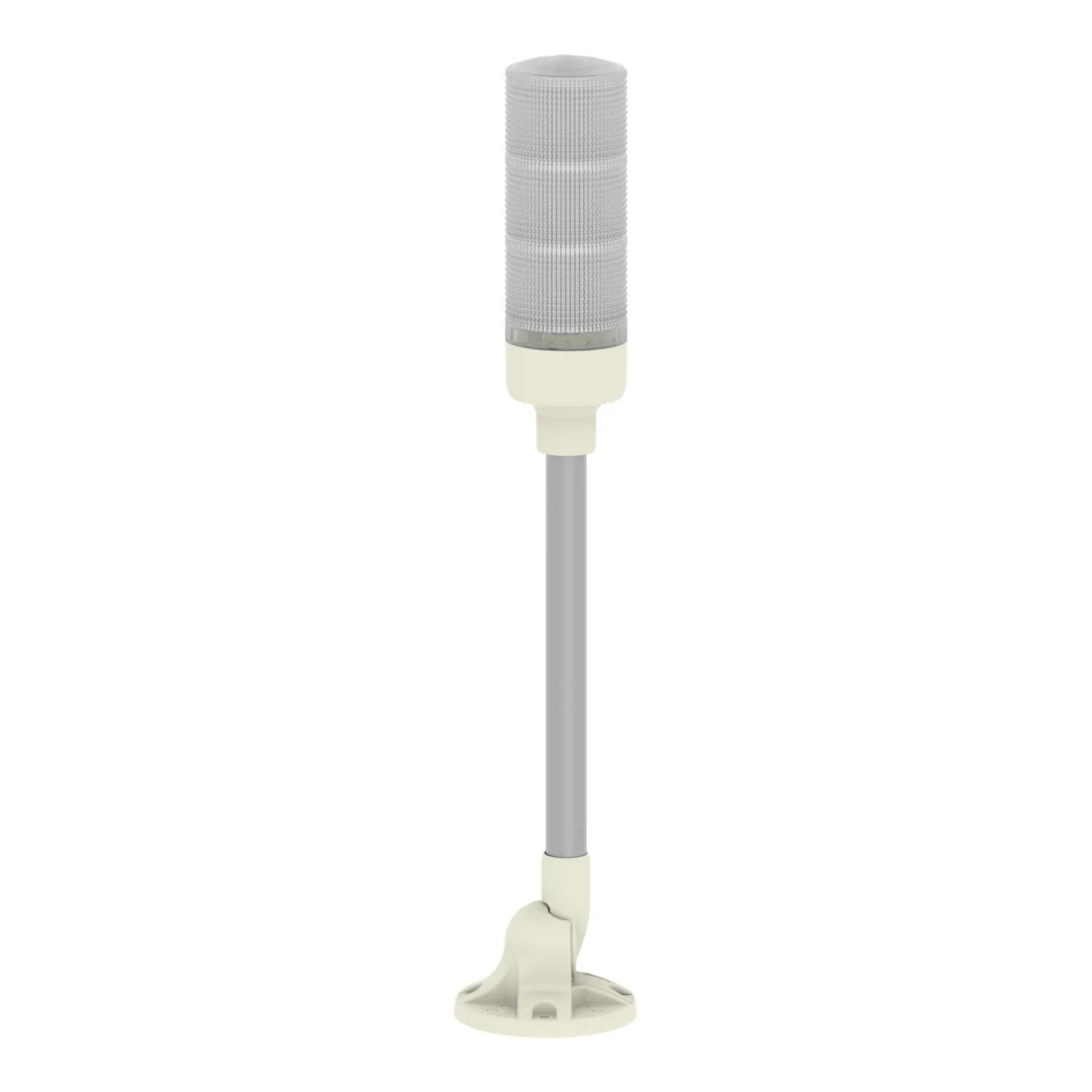

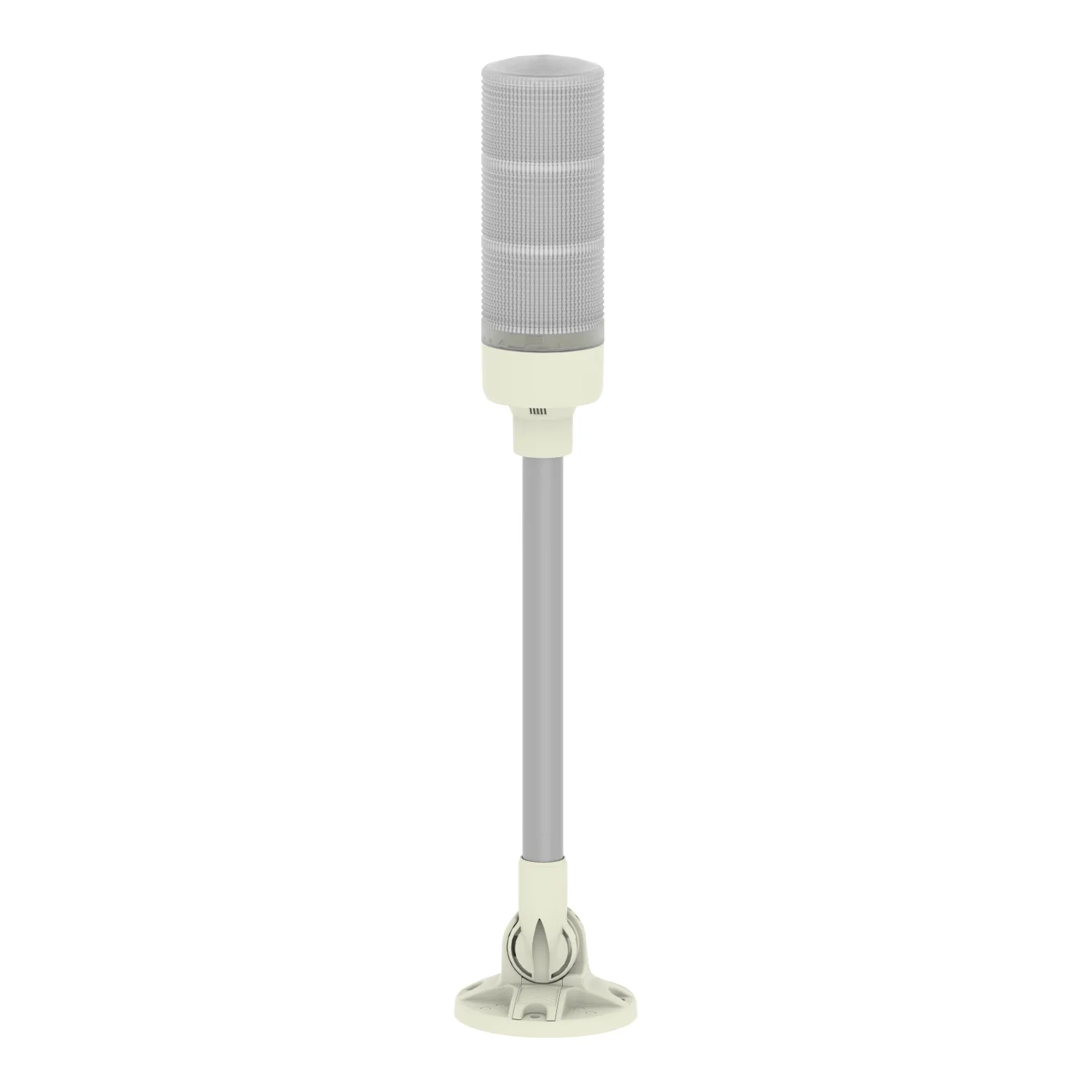

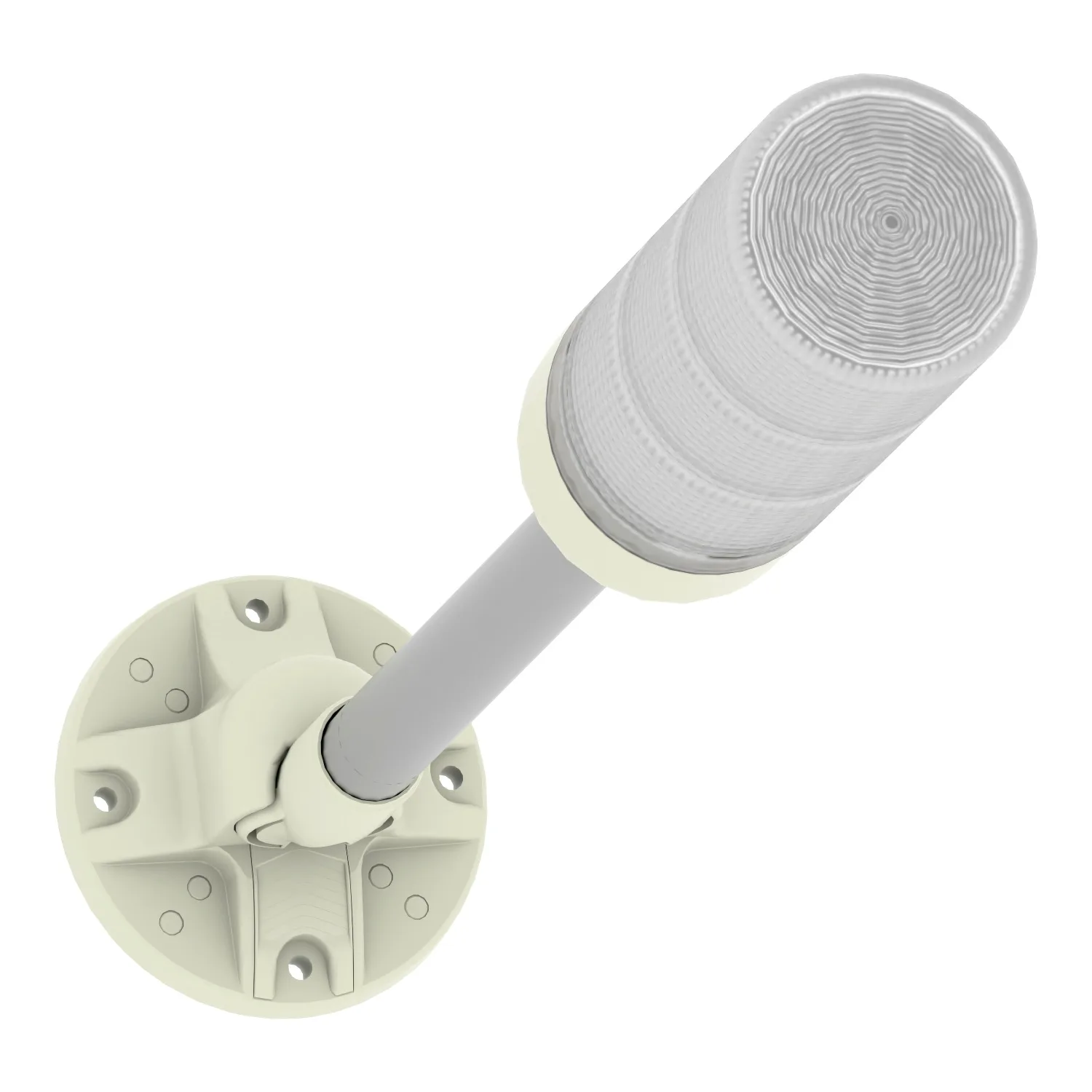

XVGB3M - Tower light, RAG, foldable bracket
Schneider XVGB3M, Tower light, RAG, foldable bracket. Category: Harmony XVG. Request a quote for price and lead time.
- Reference:XVGB3M
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:135.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XVG
- Product Or Component Type
- Complete pre-wired monolithic tower light
- Beacon Or Indicator Bank Unit Type
- 3 illuminated units
- Mounting Diameter
- 60 mm
Product Description
This product is part of the Easy Harmony XVG range, an offer of Ø 60mm monolithic tower lights. It is a complete pre-wired and pre-assembled monolithic tower light. It comes with red, amber and green steady light. It offers configurable color combinations. This tower light has a 24V AC/DC rating. Pre-assembled and pre-cabled of product allow for easy installation onto any required machines. It has an aluminum tube and weighs 0.4 kg. It is an IP40 rated product and comes with CE and EAC certification. It has a foldable bracket attached to the tube to fold tower light horizontally for easy transportation and has a pre-assembled cable for easy installation. It provides a more reliable and clear view due to the clear lens. This range offers wide range of voltage selection and flexible mounting options with visual and audible functions.
Key Features
- "Pre-assembled & Pre-wired with color code"
- "Long distance machine status by clear lens design"
- "Less maintenance thanks to LEDs"
- "Wide mounting options for all kind of applications"
- "Integrated 85dB buzzer"
Technical Specifications
Main10
| Range Of Product | Harmony XVG |
|---|---|
| Product Or Component Type | Complete pre-wired monolithic tower light |
| Beacon Or Indicator Bank Unit Type | 3 illuminated units |
| Material | PC (UL94 V-2): globe; ABS (UL94HB): tube body; Aluminium: tube |
| Mounting Diameter | 60 mm |
| Component Name | XVG |
| Device Mounting | Tube mounting with foldable bracket |
| Light Source | LED steady red; LED steady green; LED steady amber |
| Light Block Color | Red/orange/green |
| Indicator Bank Base Type | Base without buzzer |
Complementary8
| [Us] Rated Supply Voltage | 24 V AC/DC |
|---|---|
| Cable Cross Section | 0.33 mm² |
| Discrete Output Type | PNP and NPN |
| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV |
| Current Consumption | 109 mA |
| Power Consumption In W | 3.1 W |
| Fundamental Frequency | 2.64 kHz |
| Net Weight | 0.4 kg |
Environment4
| Product Certifications | CE; EAC |
|---|---|
| Ambient Air Temperature For Storage | -35…70 °C |
| Ambient Air Temperature For Operation | -10…50 °C |
| IP Degree Of Protection | IP40 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.3 cm |
| Package 1 Width | 14.0 cm |
| Package 1 Length | 54.4 cm |
| Package 1 Weight | 601.0 g |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 8 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 5.76 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 30 |
| Package 3 Height | 72 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 30.6 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
