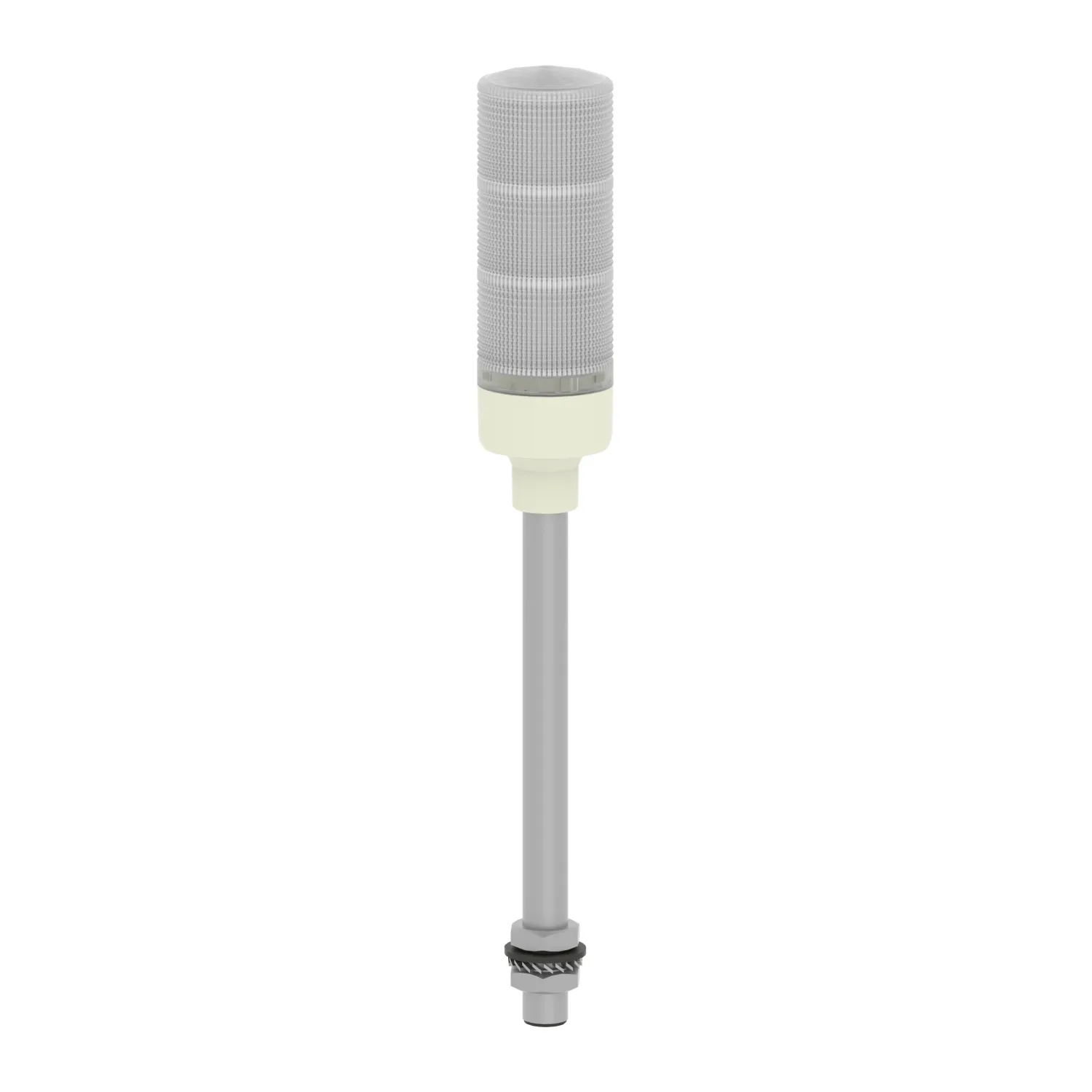

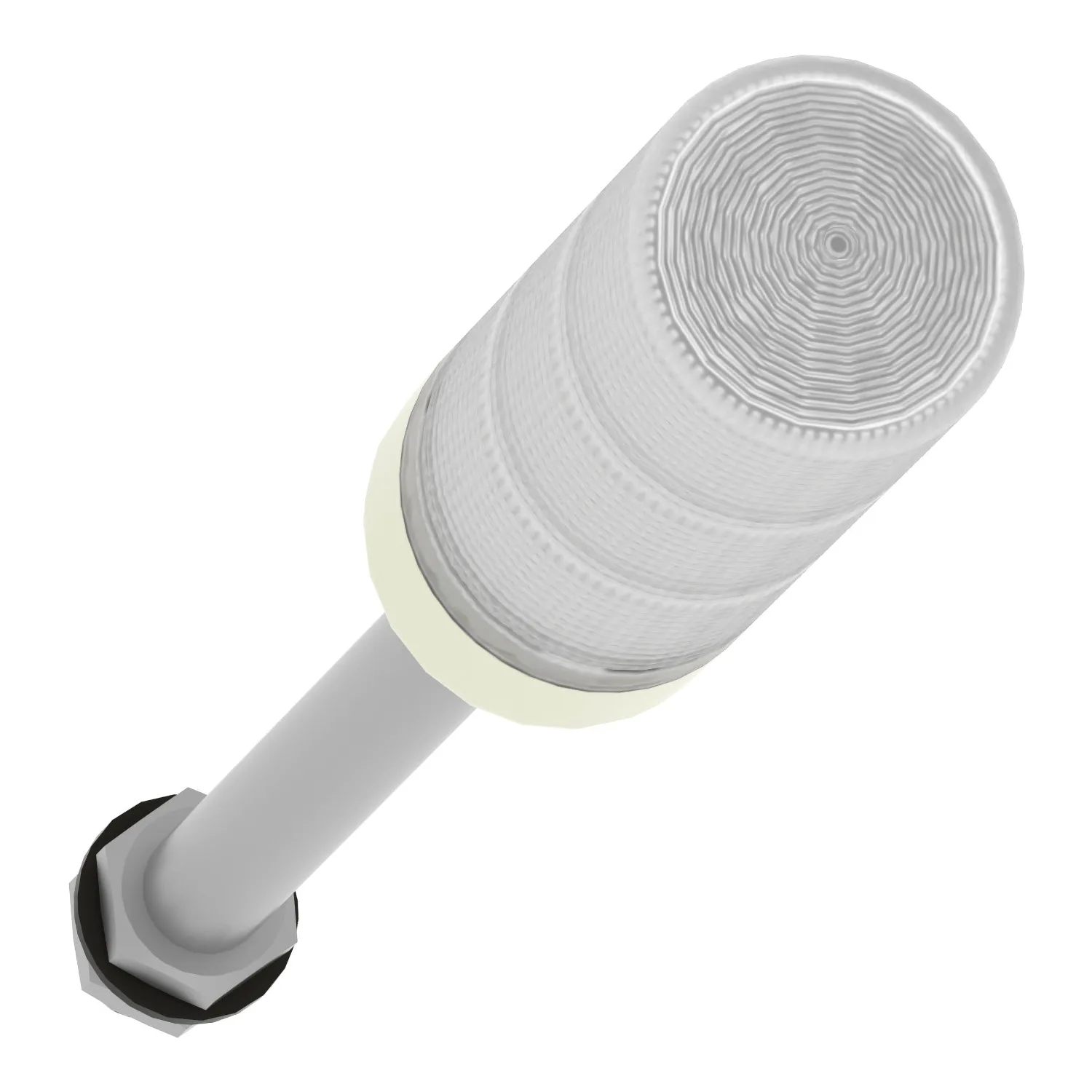

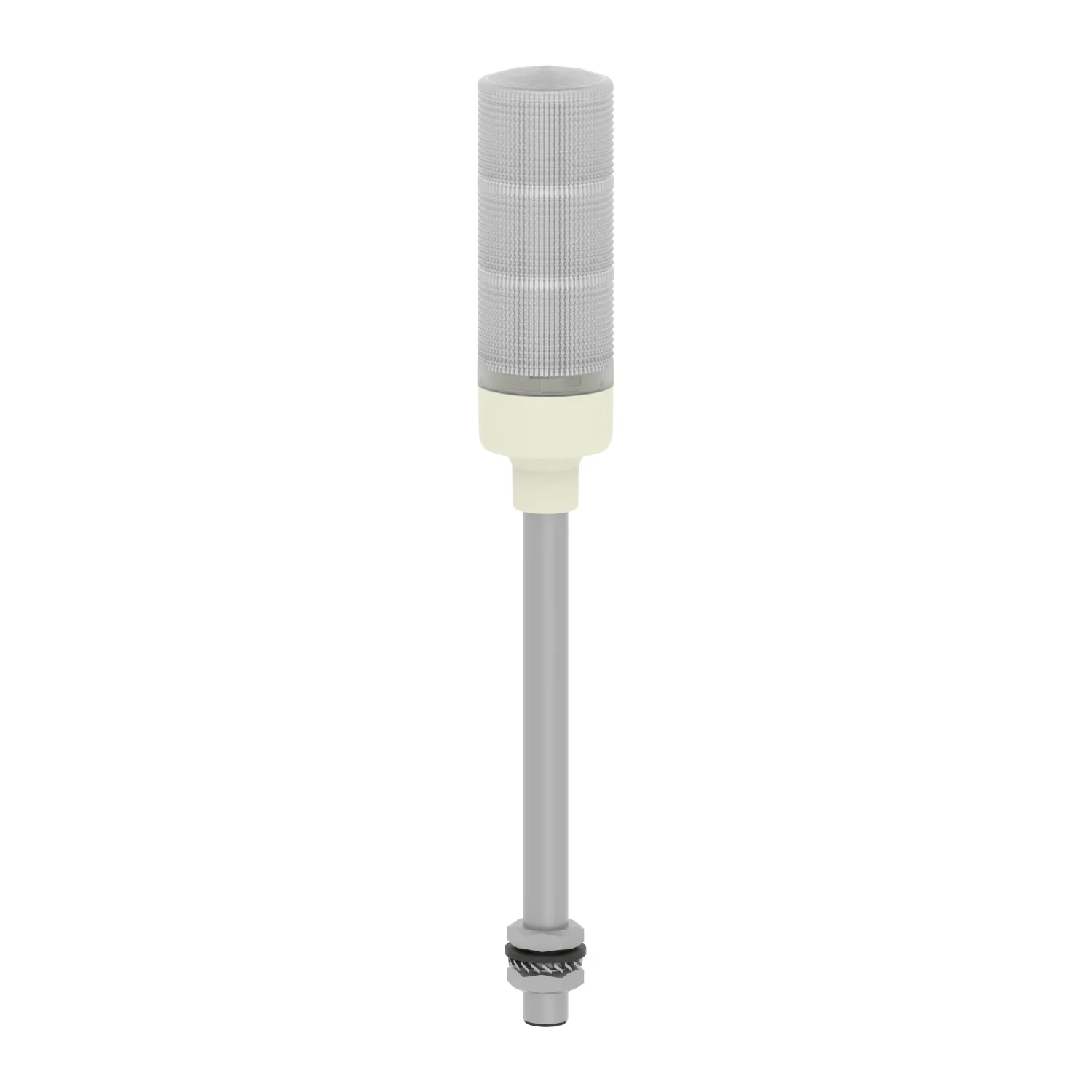

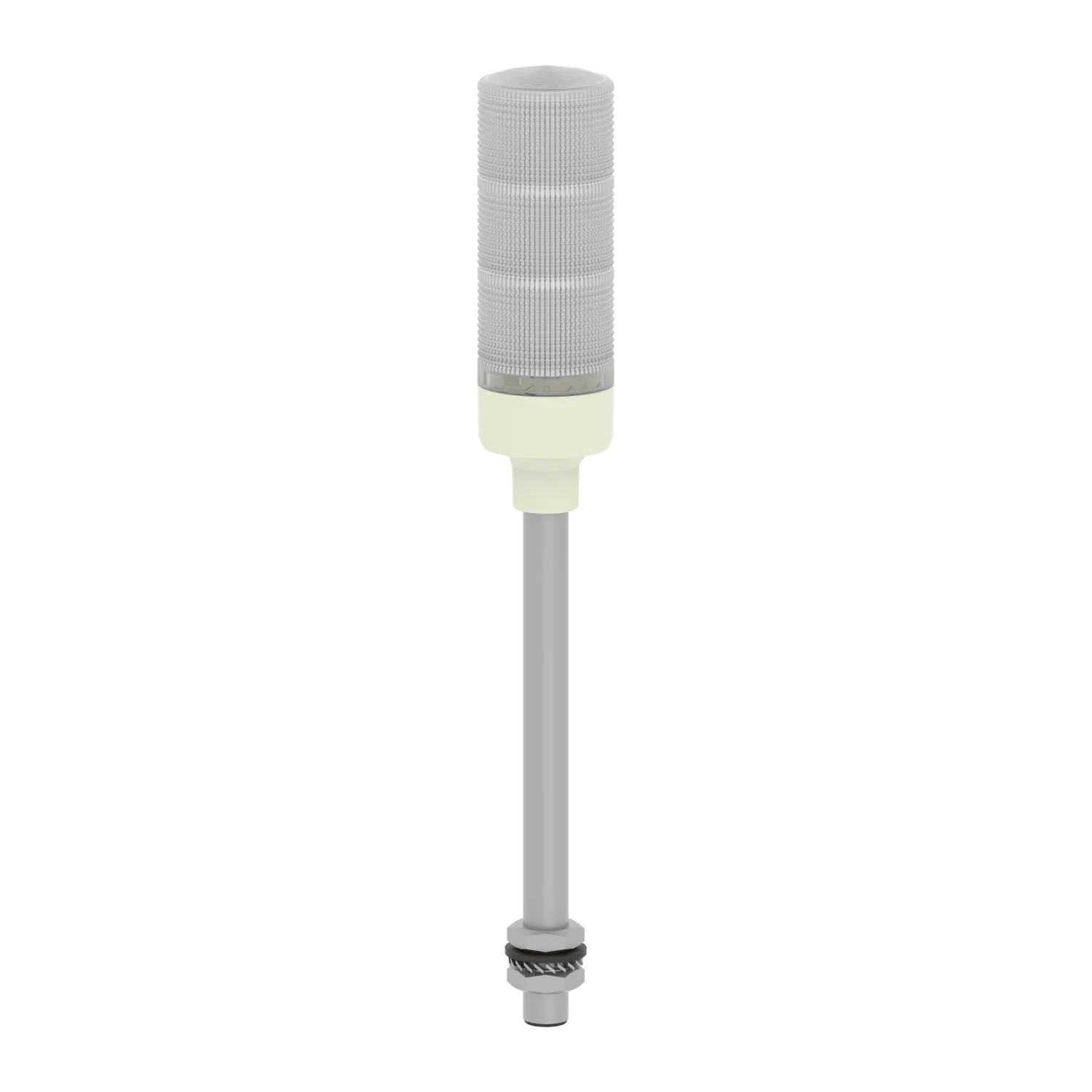

XVGB3ST - Tower light, RAG, direct mount with pole
Schneider XVGB3ST, Tower light, RAG, direct mount with pole. Category: Harmony XVG. Request a quote for price and lead time.
- Reference:XVGB3ST
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:144.50 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XVG
- Product Or Component Type
- Complete pre-wired monolithic tower light
- Beacon Or Indicator Bank Unit Type
- 3 illuminated units
- Mounting Diameter
- 60 mm
Product Description
This product is part of the Easy Harmony XVG range, an offer of Ø 60mm monolithic tower lights. It is a complete pre-wired and pre-assembled monolithic tower light. It comes with red, amber and green steady light. It offers configurable color combinations and has a base with an integrated buzzer. This tower light has a 24V AC/DC rating. This tower light has a sound rating of 85 dB. It has an aluminum tube and weighs 0.4 kg. It is an IP23 rated product and comes with CE and EAC certification. It has a direct tube mounting and pre-assembled cable for easy installation. It provides a more reliable and clear view due to the clear lens. This range offers wide range of voltage selection and flexible mounting options with visual and audible functions.
Key Features
- "Pre-assembled & Pre-wired with color code"
- "Long distance machine status by clear lens design"
- "Less maintenance thanks to LEDs"
- "Wide mounting options for all kind of applications"
- "Integrated 85dB buzzer"
Technical Specifications
Main10
| Range Of Product | Harmony XVG |
|---|---|
| Product Or Component Type | Complete pre-wired monolithic tower light |
| Beacon Or Indicator Bank Unit Type | 3 illuminated units |
| Material | PC (UL94 V-2): globe; ABS (UL94HB): tube body; Aluminium: tube |
| Mounting Diameter | 60 mm |
| Component Name | XVG |
| Device Mounting | Direct tube mounting |
| Light Source | LED steady red; LED steady green; LED steady amber |
| Light Block Color | Red/orange/green |
| Indicator Bank Base Type | Base with integrated buzzer |
Complementary9
| [Us] Rated Supply Voltage | 24 V AC/DC |
|---|---|
| Cable Cross Section | 0.33 mm² |
| Discrete Output Type | PNP and NPN |
| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV |
| Current Consumption | 180 mA |
| Noise Level | 85 dB |
| Power Consumption In W | 4.1 W |
| Fundamental Frequency | 2.64 kHz |
| Net Weight | 0.4 kg |
Environment4
| Product Certifications | CE; EAC |
|---|---|
| Ambient Air Temperature For Storage | -35…70 °C |
| Ambient Air Temperature For Operation | -10…50 °C |
| IP Degree Of Protection | IP23 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.3 cm |
| Package 1 Width | 14.2 cm |
| Package 1 Length | 55.3 cm |
| Package 1 Weight | 590.0 g |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 8 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 3.94 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 30 |
| Package 3 Height | 72 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 26 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
