Schneider

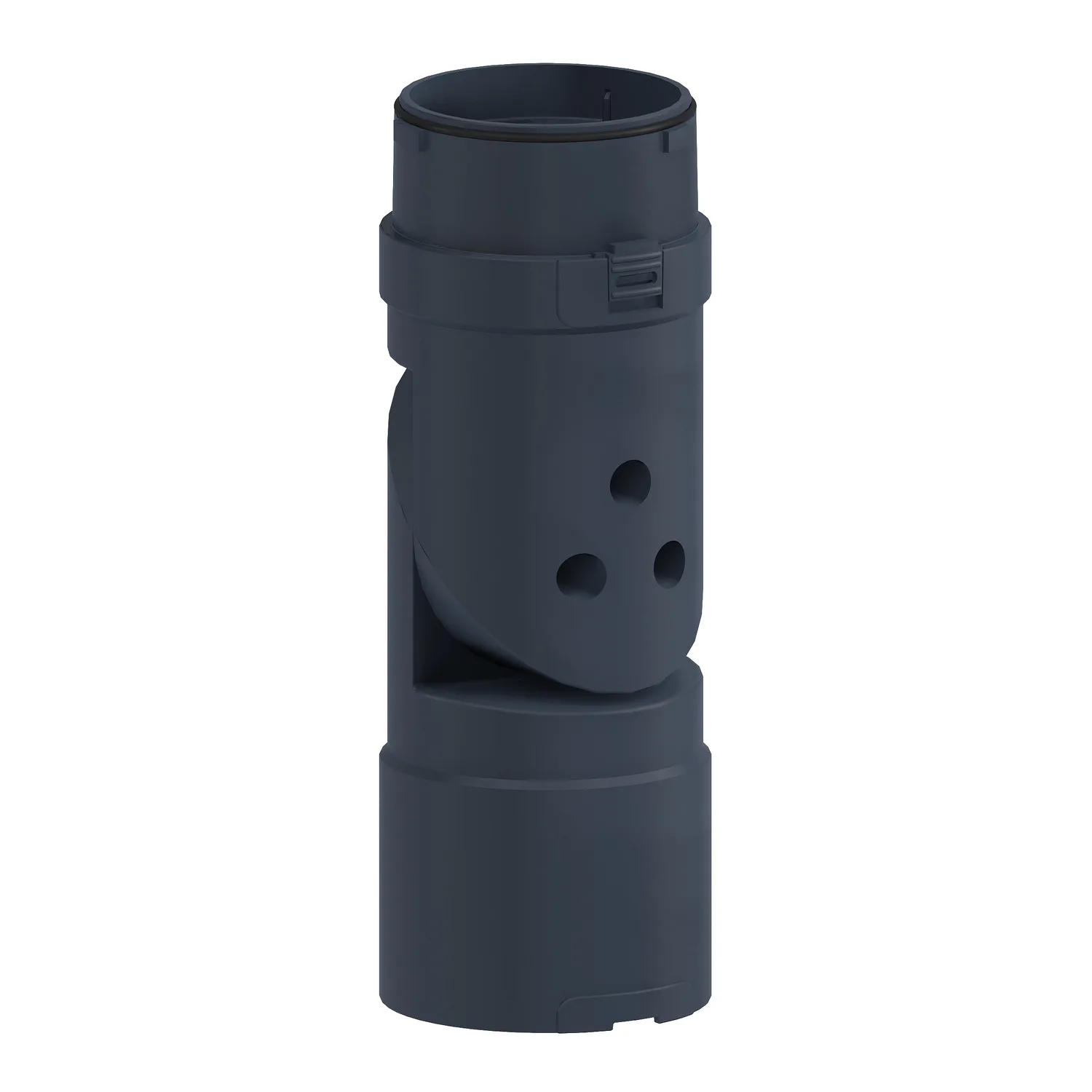

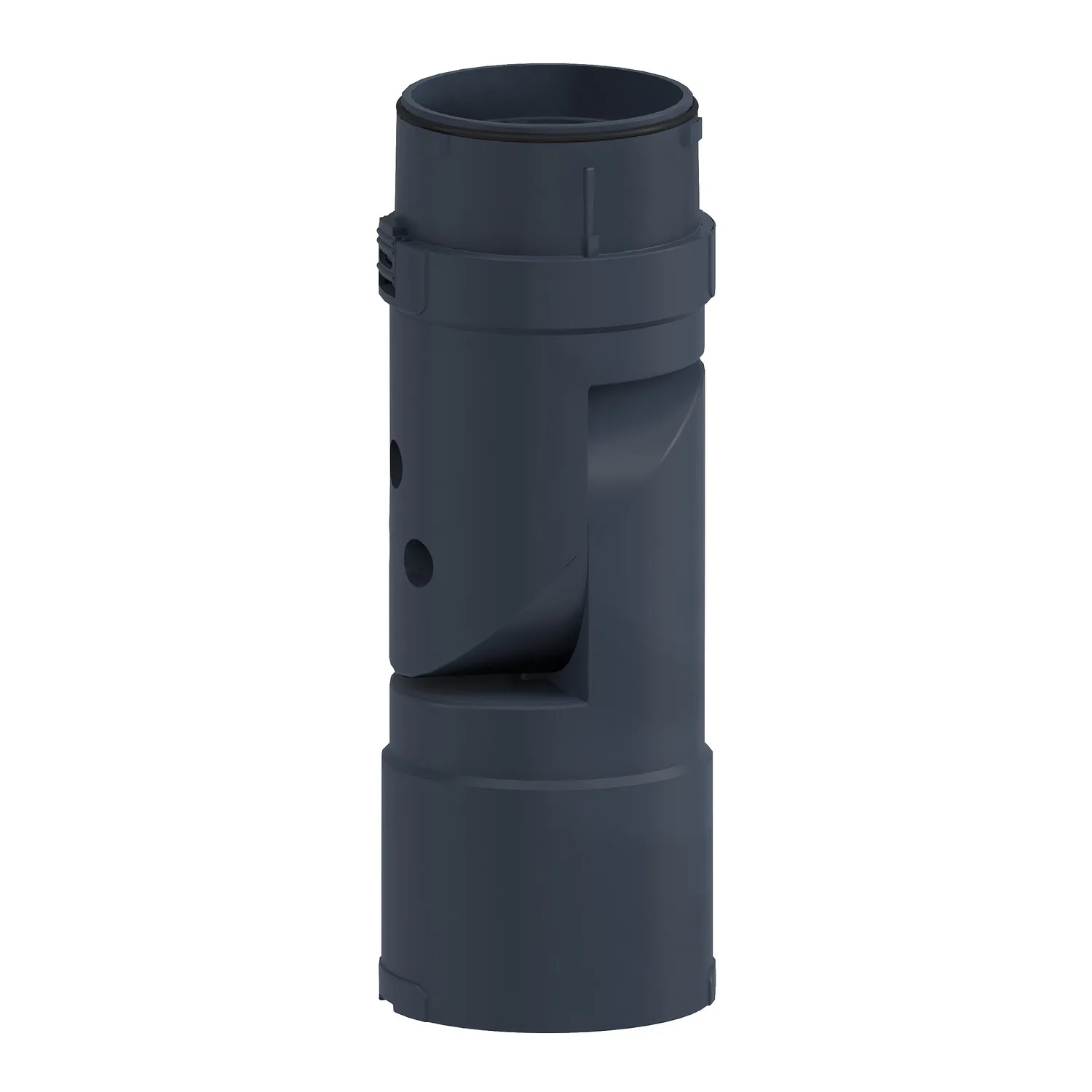

Mounting holder; black; IP65; Ø60mm; -25÷50°C; signalling column
Schneider XVUZ06, Mounting holder; black; IP65; Ø60mm; -25÷50°C; signalling column. Category: Harmony XVU. Request a quote for price and lead time.
- Reference:XVUZ06
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:71.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XVU
- Product Or Component Type
- Modular tower light
- Accessory / Separate Part Type
- Swivel mounting support
- Accessory / Separate Part Category
- Mounting and fixing accessory
Product Description
This flexible mounting unit is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and it is orientable at -90 to 90 degree operating angle. It also has an IP55 protection index.
Key Features
- "6 colors + multi color LED with 4 light patterns: steady, flashing, blinking, and rotating"
- "4 mounting styles: flexible, wall, pole, or direct mounting"
- "Programmable sounders that is configurable via the sd card"
- "Moduler design supporting customization up to 5 light units"
- "Simplified installation, easy maintenance, and direct connection to PLC"
Technical Specifications
Main6
| Range Of Product | Harmony XVU |
|---|---|
| Product Or Component Type | Modular tower light |
| Accessory / Separate Part Type | Swivel mounting support |
| Accessory / Separate Part Category | Mounting and fixing accessory |
| Component Name | XVU |
| Mounting Diameter | 60 mm |
Complementary6
| Product Compatibility | Top: AC body; Top: DC body; Bottom: mounting plate |
|---|---|
| Function Available | Orientable at -90…90 ° operating angle |
| Material | PBT (polybutylene terephthalate) V-0 conforming to UL 94; ABS (acrylonitrile butadiene-styrene); PC (polycarbonate) |
| [Us] Rated Supply Voltage | 24 V AC/DC; 110...240 V AC |
| Length | 146 mm |
| Net Weight | 0.193 kg |
Environment4
| Ambient Air Temperature For Storage | -40…70 °C |
|---|---|
| Ambient Air Temperature For Operation | -25…50 °C |
| IP Degree Of Protection | IP55 |
| Product Certifications | CSA; CE; UL |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 27.000 cm |
| Package 1 Weight | 380.000 g |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 24 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.325 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 96 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 40.600 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
