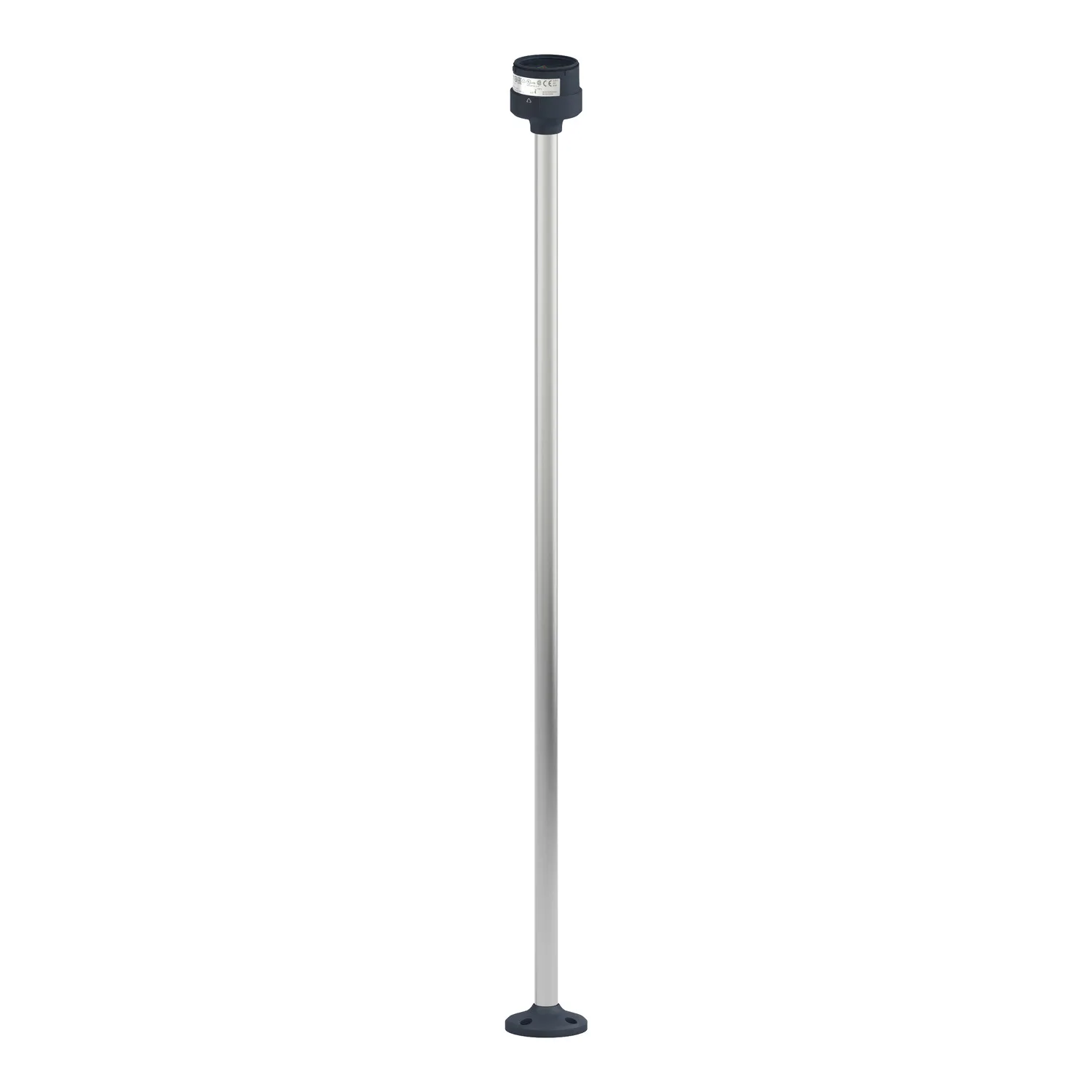

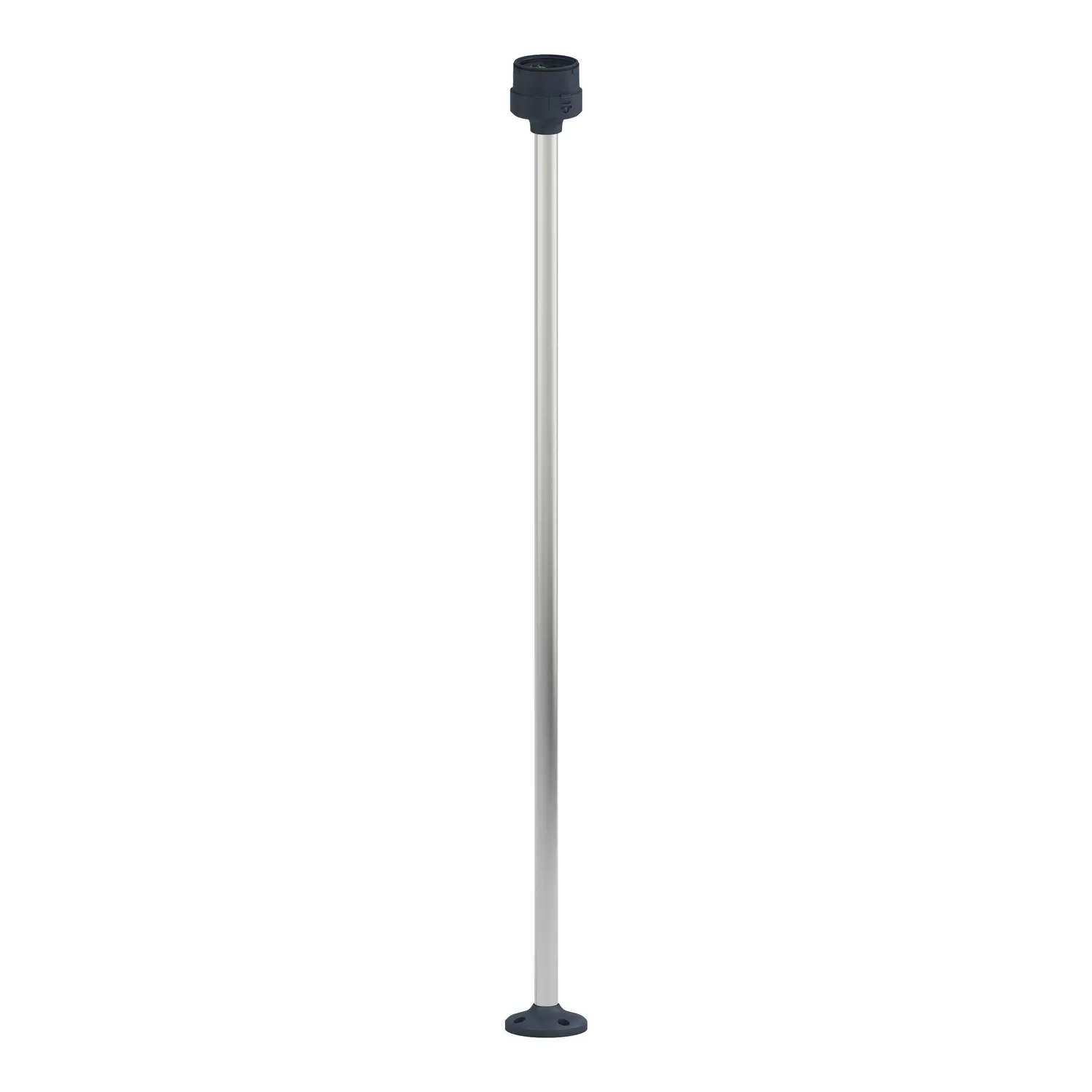

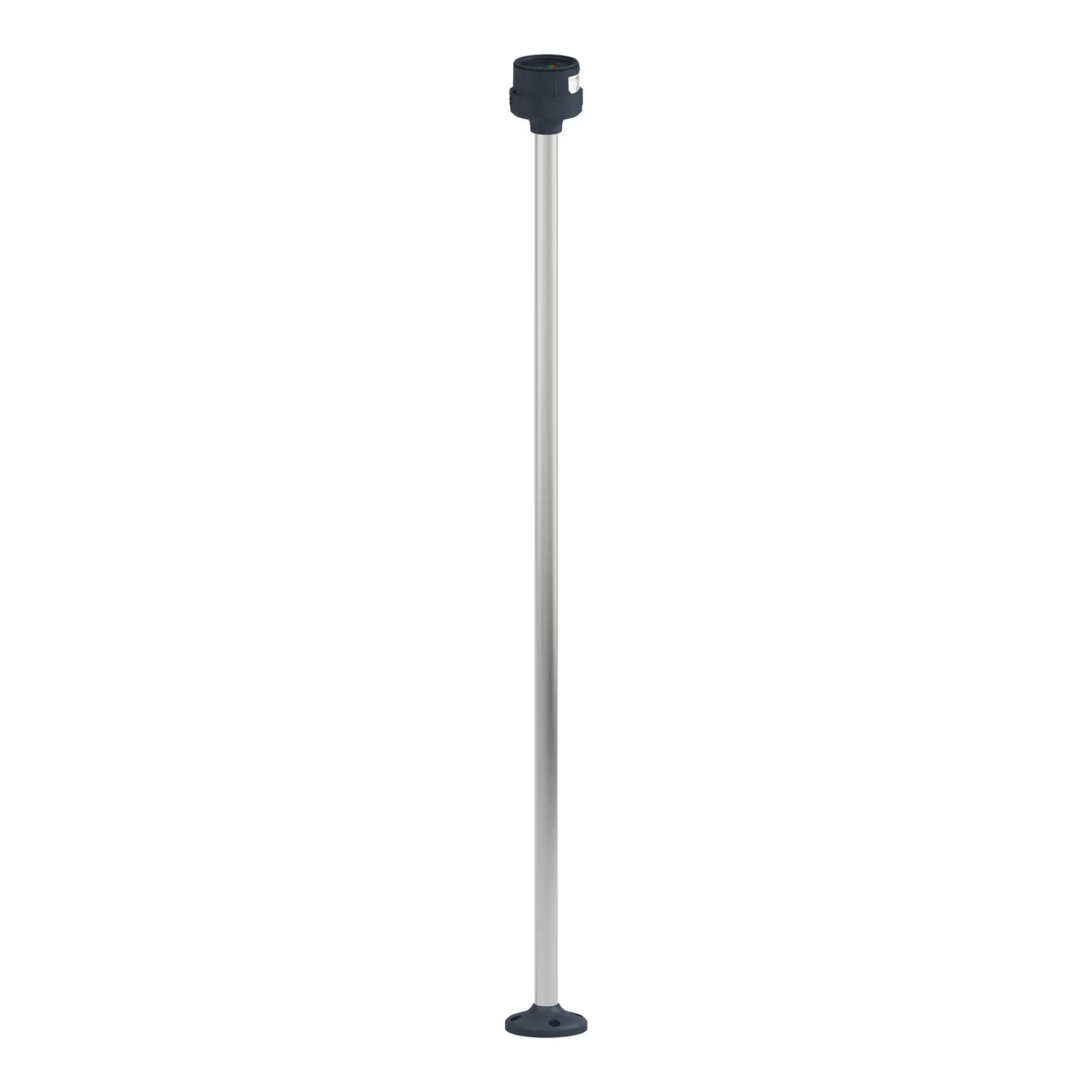

XVUZ800 - FIXING PLATE WITH 800MM POLE, BLACK
Schneider XVUZ800, FIXING PLATE WITH 800MM POLE, BLACK. Category: Harmony XVU. Request a quote for price and lead time.
- Reference:XVUZ800
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:144.50 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XVU
- Product Or Component Type
- Modular tower light
- Accessory / Separate Part Type
- Fixing plate
- Accessory / Separate Part Category
- Mounting and fixing accessory
Product Description
This Harmony XVU fixing plate is work with DC and AC base units. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 800mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.
Key Features
- "6 colors + multi color LED with 4 light patterns: steady, flashing, blinking, and rotating"
- "4 mounting styles: flexible, wall, pole, or direct mounting"
- "Programmable sounders that is configurable via the sd card"
- "Moduler design supporting customization up to 5 light units"
- "Simplified installation, easy maintenance, and direct connection to PLC"
Technical Specifications
Main6
| Range Of Product | Harmony XVU |
|---|---|
| Product Or Component Type | Modular tower light |
| Accessory / Separate Part Type | Fixing plate |
| Accessory / Separate Part Category | Mounting and fixing accessory |
| Component Name | XVU |
| Mounting Diameter | 60 mm |
Complementary9
| Pole Heigth | 800 mm |
|---|---|
| Mounting Support | Plate with pole |
| Product Compatibility | Top: AC/DC body |
| Material | PBT (polybutylene terephthalate) V-0 conforming to UL 94; ABS (acrylonitrile butadiene-styrene); PC (polycarbonate); Aluminium |
| Housing Colour | Black |
| Connections - Terminals | Push-in |
| [Us] Rated Supply Voltage | 24 V AC/DC; 110...240 V AC |
| Length | 817 mm |
| Net Weight | 0.43 kg |
Environment4
| Ambient Air Temperature For Storage | -40…70 °C |
|---|---|
| Ambient Air Temperature For Operation | -25…50 °C |
| IP Degree Of Protection | IP65 |
| Product Certifications | UL; CSA; CE |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 96.500 cm |
| Package 1 Weight | 909.000 g |
| Unit Type Of Package 2 | CAR |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 21.000 cm |
| Package 2 Width | 36.000 cm |
| Package 2 Length | 98.500 cm |
| Package 2 Weight | 6.360 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 12 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 25.000 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
