Telemecanique Sensors

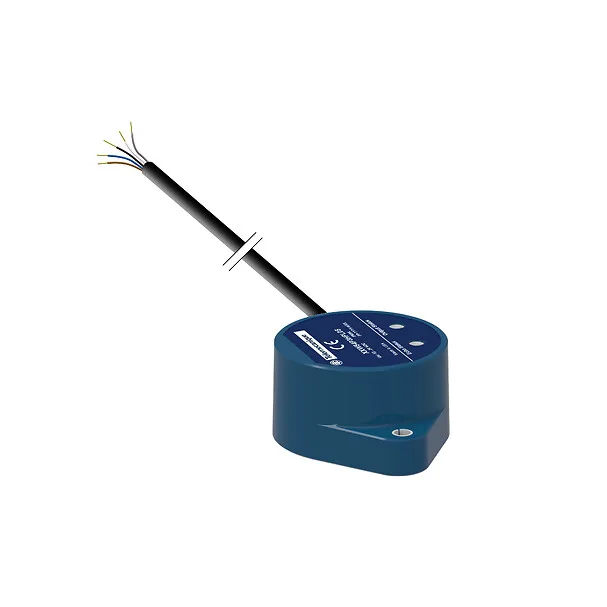

XXW54P3HPL05 - Ultrasonic Wide Beam
Telemecanique Sensors XXW54P3HPL05, Ultrasonic Wide Beam. Request a quote for price and lead time.
- Reference:XXW54P3HPL05
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:664.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- Sensor Type
- Ultrasonic sensor
- Series Name
- Application
- Sensor Name
- XXS
Product Description
Telemecanique Sensors XXW54P3HPL05 (Ultrasonik Wide Beam). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main16
| Range Of Product | Telemecanique Ultrasonic sensors XX |
|---|---|
| Sensor Type | Ultrasonic sensor |
| Series Name | Application |
| Sensor Name | XXS |
| Sensor Design | Ø 54 mm |
| Detection System | Diffuse |
| Material | Plastic |
| Type Of Output Signal | Analogue + discrete |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Wiring Technique | 5-wire |
| Analogue Output Function | 0.5...4.5 V |
| [Us] Rated Supply Voltage | 12...24 V DC with reverse polarity protection |
| Discrete Output Type | PNP |
| Electrical Connection | Cable 5 pins, 0.5 m cable length |
| Enclosure Material | Valox |
| Front Material | Ultem |
Complementary11
| Function Available | Software configurable |
|---|---|
| Voltage Drop | 2 VOLT |
| Minimum Size Of Detected Object | Cylinder diameter 12 mm at 3 m |
| Delay First Up | 400 ms |
| Current Consumption | 30 mA |
| Status LED | Output state: 1 LED (yellow), echo state and power ON: 1 LED (green/white) |
| Maximum Switching Capacity | >= 2 kOhm overload and short-circuit protection |
| Setting-up | Configurator software |
| Switching Frequency | <= 1.6 Hz |
| Delay Response | 300 ms |
| Delay Recovery | 300 ms |
Environment6
| IP Degree Of Protection | IP65 conforming to IEC 60529, IP67, IP69K |
|---|---|
| Marking | CE |
| Standards | CSA C22.2 No 14, IEC 60947-5-2, UL 508 |
| Product Certifications | cULus, E2 |
| Vibration Resistance | +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock Resistance | 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units13
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 13 cm |
| Package 1 Weight | 0.15 kg |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 4 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 0.8 kg |
| Indivisible Sale Quantity | 1 |
