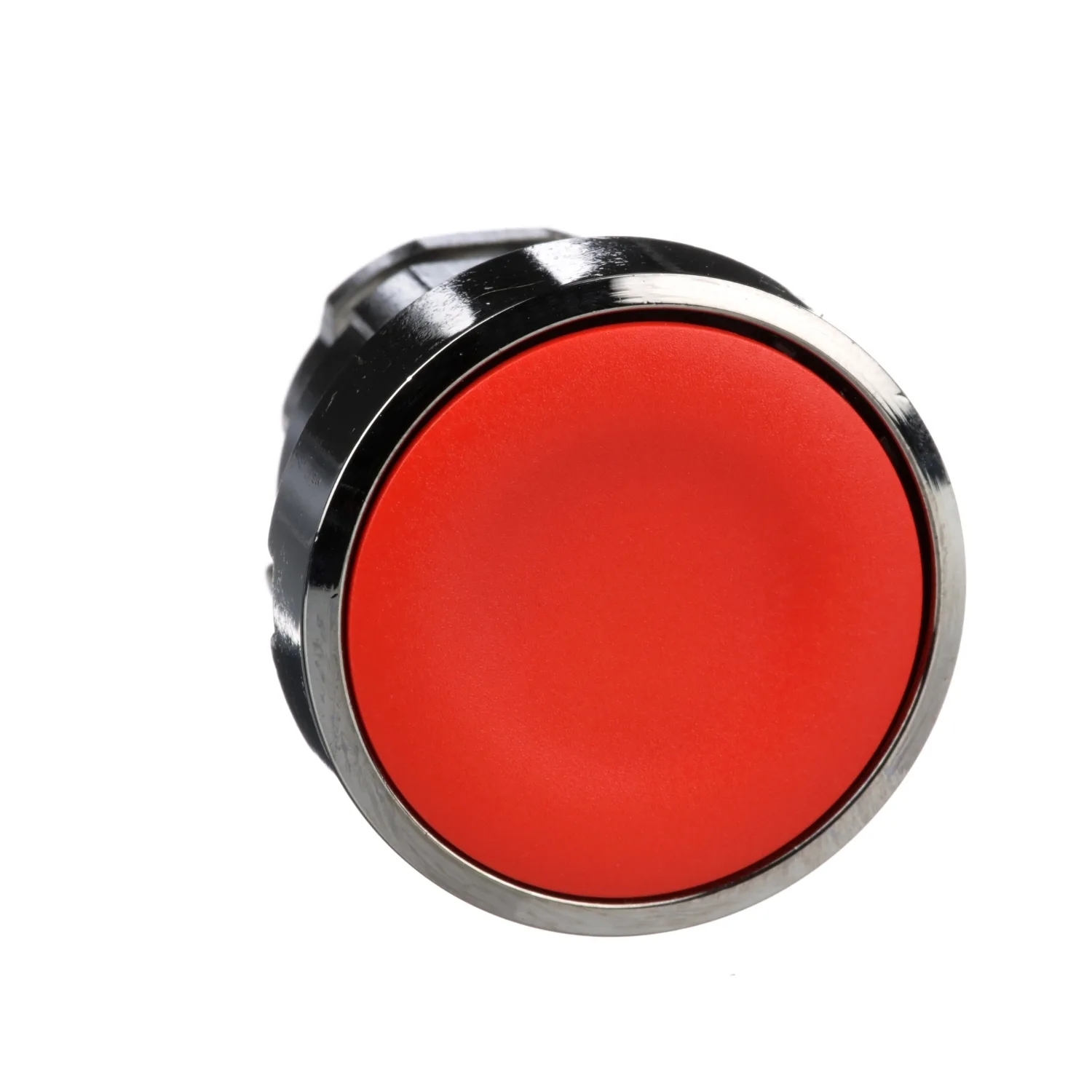

Schneider ZB4BA4, Switch: push-button; 22mm; Stabl.pos: 1; red; none; IP66; flat; Pos: 2. Category: Harmony XB4. Request a quote for price and lead time.
- Reference:ZB4BA4
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:6.90 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- Head for non-illuminated push-button
- Device Short Name
- ZB4
- Bezel Material
- Chromium plated metal
Product Description
This Harmony XB4, red button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Key Features
- "Quick and easy assembly and disassembly"
- "Robustness to withstand harsh environments"
- "Various types of connection: screw clamp, connector, Faston connector or spring terminal"
- "Excellent mechanical connection with operator head"
- "A wide choice of contact blocks for general purposes or specific applications (low current, standard)"
Technical Specifications
Main11
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Head for non-illuminated push-button |
| Device Short Name | ZB4 |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 22.5 mm |
| Sale Per Indivisible Quantity | 1 |
| Head Type | Standard |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Red flush, unmarked |
| Cap/operator Or Lens Colour | Red |
Complementary6
| CAD Overall Width | 29 mm |
|---|---|
| CAD Overall Height | 29 mm |
| CAD Overall Depth | 28 mm |
| Mechanical Durability | 10000000 cycles |
| Electrical Composition Code | C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting |
| Device Presentation | Basic element |
Environment11
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…70 °C |
| Overvoltage Category | Class I conforming to IEC 60536 |
| IP Degree Of Protection | IP66 conforming to IEC 60529; IP67; IP69; IP69K |
| Enclosure Type | UL type 4X/13 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-1; IEC 60947-5-4; IEC 60947-5-5; UL 508; JIS C8201-1 |
| Product Certifications | BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 3.400 cm |
| Package 1 Length | 5.400 cm |
| Package 1 Weight | 29.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 300 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.880 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 2400 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 81.164 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
