Schneider

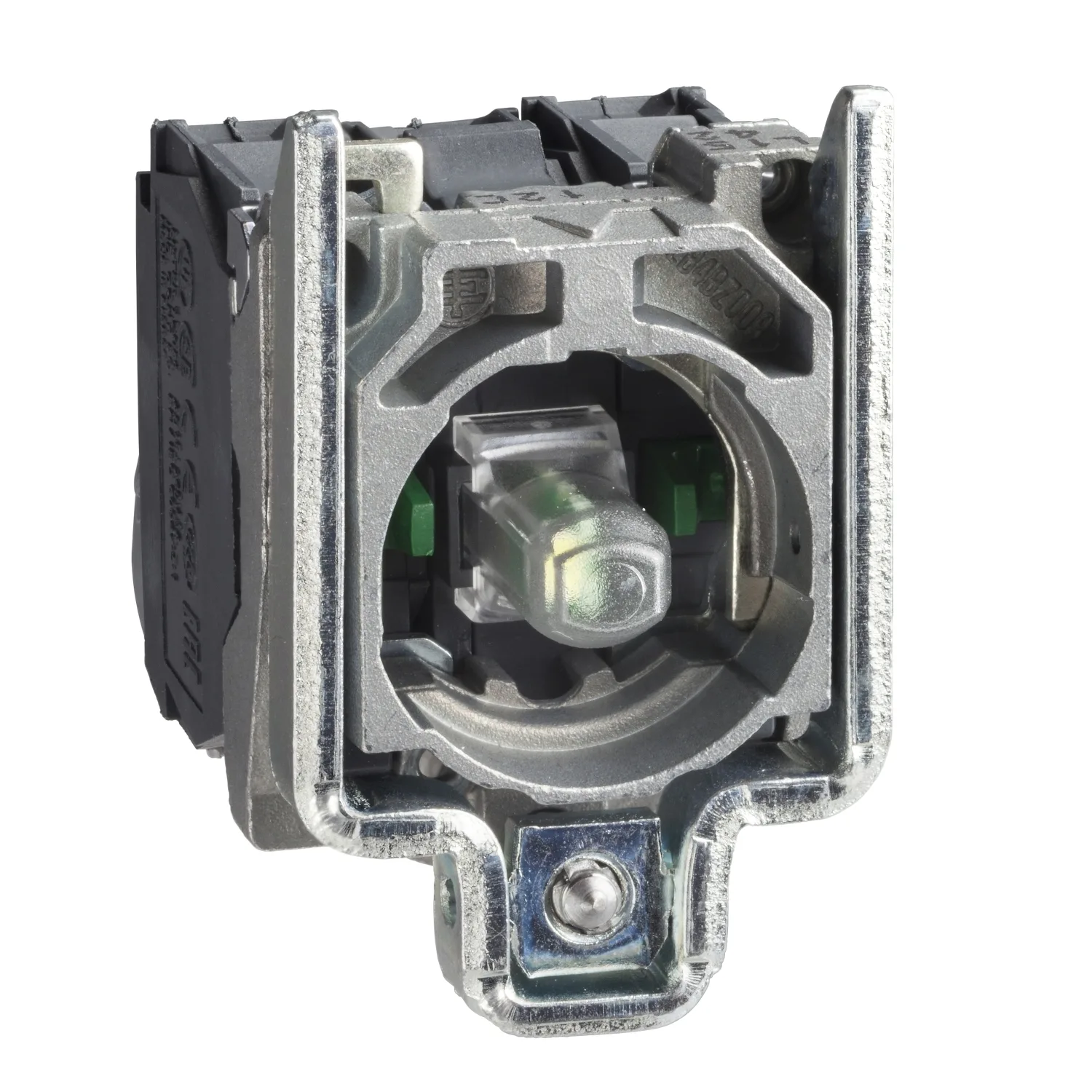

Illuminating unit; 22mm; Harmony XB4; Illumin: LED; front; blue
Not for sale
Schneider ZB4BW0M63, Illuminating unit; 22mm; Harmony XB4; Illumin: LED; front; blue. Category: Harmony XB4. Not for sale; no price or quote is offered for this product.
- Reference:ZB4BW0M63
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- Complete body/contact assembly and light block
- Device Short Name
- ZB4
- Fixing Collar Material
- Zamak
Product Description
- Illuminating unit
- 22mm
- Harmony XB4
- Illumin: LED
- front
- blue
Technical Specifications
Main14
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Complete body/contact assembly and light block |
| Device Short Name | ZB4 |
| Fixing Collar Material | Zamak |
| Sale Per Indivisible Quantity | 1 |
| Head Type | Standard |
| Contacts Type And Composition | 2 NO |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Light Source | Protected LED |
| Bulb Base | Integral LED |
| Light Block Supply | Direct |
| Light Source Colour | Blue |
| [Us] Rated Supply Voltage | 230...240 V AC at 50/60 Hz |
Complementary25
| CAD Overall Width | 30 mm |
|---|---|
| CAD Overall Height | 47 mm |
| Terminals Description ISO N°1 | (13-14)NO |
| Net Weight | 0.074 kg |
| Contacts Usage | Standard |
| Positive Opening | Without |
| Operating Travel | 2.6 mm (NO changing electrical state); 4.3 mm (total travel) |
| Operating Force | 2.3 N NO changing electrical state |
| Operating Torque | 0.05 N.m NO changing electrical state |
| Mechanical Durability | 5000000 cycles |
| Tightening Torque | 0.8…1.2 N.m conforming to EN 60947-1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to EN 60947-1 |
| [Ie] Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 |
| Electrical Reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Signalling Type | Steady |
| Supply Voltage Limits | 195…264 V AC |
| Current Consumption | 14 mA |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV conforming to IEC 61000-4-5 |
Environment12
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…70 °C |
| Electrical Shock Protection Class | Class I conforming to IEC 60536 |
| Standards | UL 508; EN/IEC 60947-1; CSA C22.2 No 14; JIS C8201-5-1; EN/IEC 60947-5-5; EN/IEC 60947-5-4; EN/IEC 60947-5-1; JIS C8201-1 |
| Product Certifications | CSA; BV; DNV; GL; UL listed; LROS (Lloyds register of shipping) |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance To Fast Transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance To Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-2-6; 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6 |
| Electromagnetic Emission | Class B conforming to IEC 55011 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.6 cm |
| Package 1 Width | 3.4 cm |
| Package 1 Length | 5.4 cm |
| Package 1 Weight | 70 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 150 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 11.04 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
