Switch: push-button; 22mm; Stabl.pos: 1; blue; none; IP66; flat

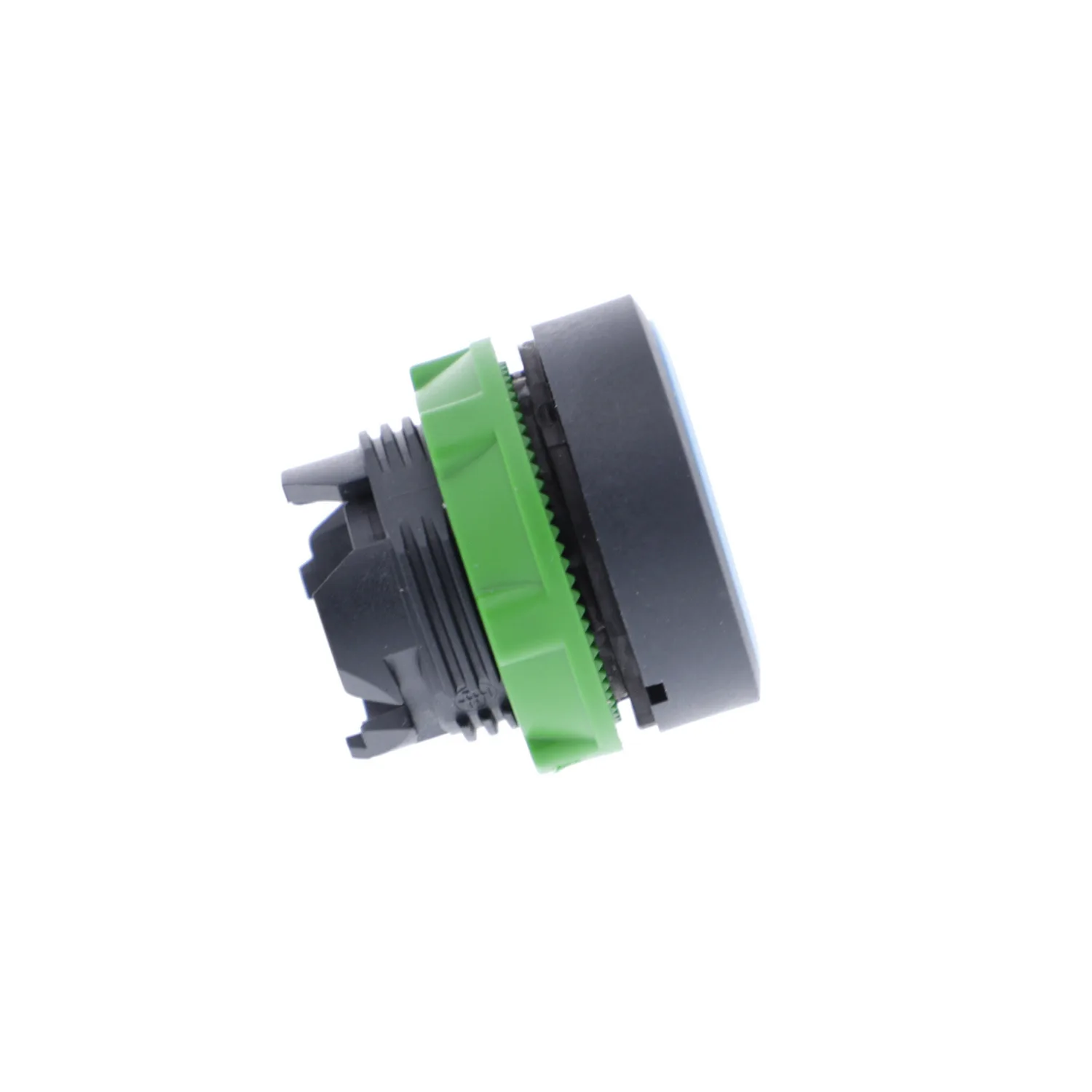

Schneider ZB5AA6, Switch: push-button; 22mm; Stabl.pos: 1; blue; none; IP66; flat. Category: Harmony XB5. Request a quote for price and lead time.
- Reference:ZB5AA6
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:3.90 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB5
- Product Or Component Type
- Head for non-illuminated push-button
- Device Short Name
- ZB5
- Bezel Material
- Dark grey plastic
Product Description

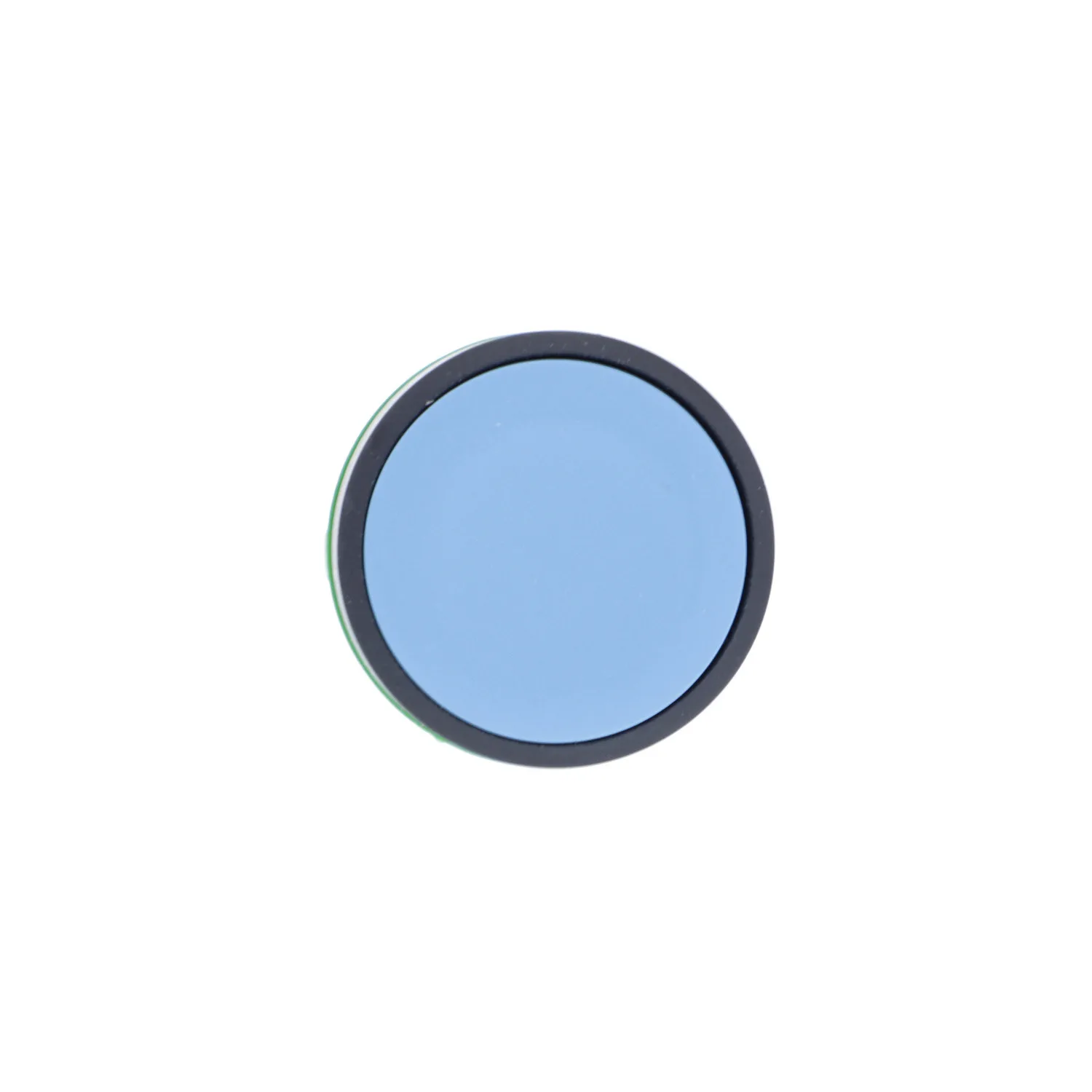

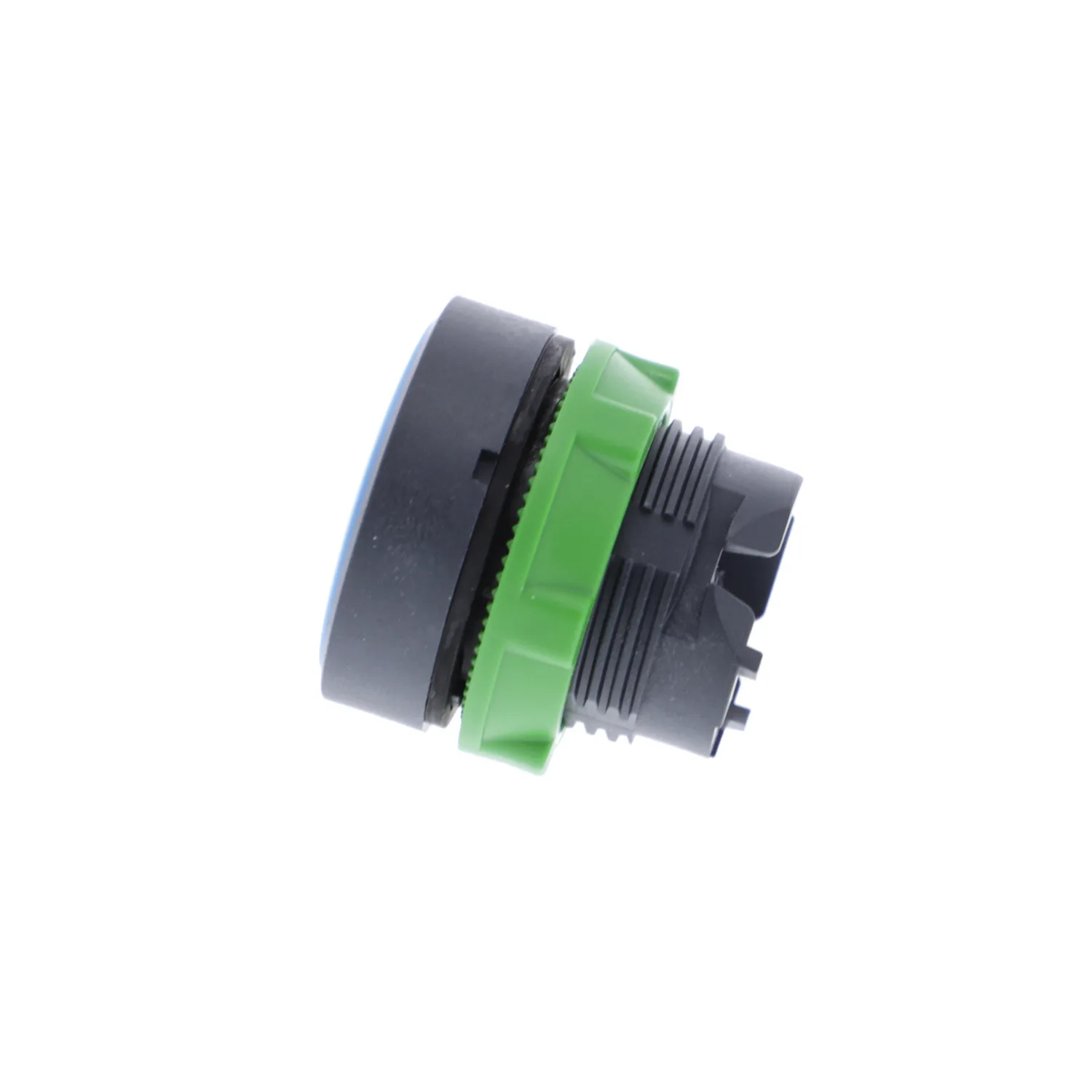

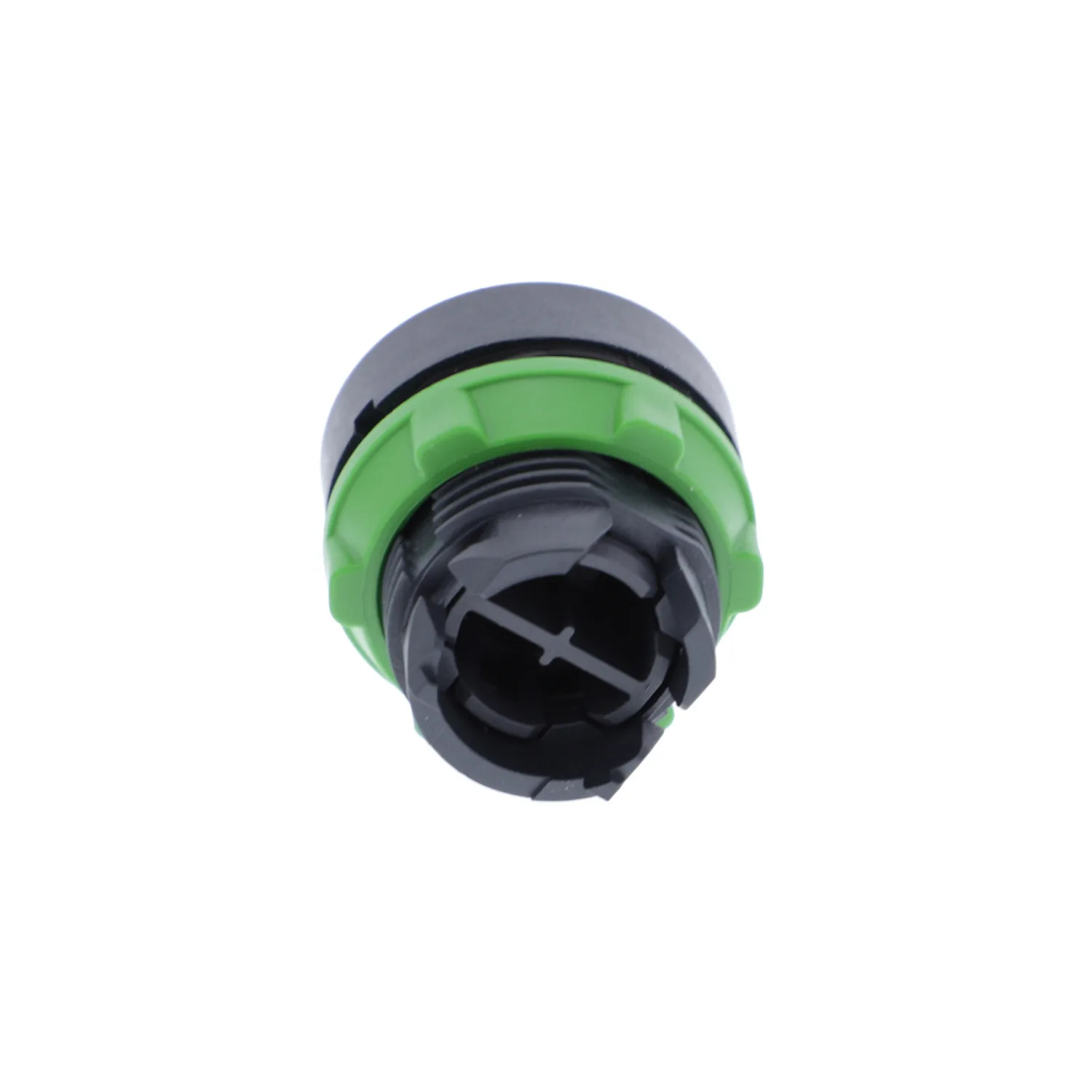

This Harmony XB5, flush blue button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Key Features
- "Quick and easy assembly and disassembly"
- "Robustness to withstand harsh environments"
- "With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board"
- "A wide choice of contact blocks for general purposes or specific applications (low current, standard)"
- "Excellent mechanical connection with operator head"
Technical Specifications
Main10
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for non-illuminated push-button |
| Device Short Name | ZB5 |
| Bezel Material | Dark grey plastic |
| Mounting Diameter | 22 mm |
| Head Type | Standard |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Blue flush, unmarked |
Complementary8
| CAD Overall Width | 29 mm |
|---|---|
| CAD Overall Height | 29 mm |
| CAD Overall Depth | 28 mm |
| Net Weight | 0.018 kg |
| Mechanical Durability | 10000000 cycles |
| Station Name | XALD 1...5 cut-outs; XALK 2...5 cut-outs |
| Electrical Composition Code | C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting |
| Device Presentation | Basic element |
Environment12
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…70 °C |
| Overvoltage Category | Class II conforming to IEC 60536 |
| IP Degree Of Protection | IP66 conforming to IEC 60529; IP67; IP69; IP69K |
| Enclosure Type | UL type 4X/13 |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IK Degree Of Protection | IK03 conforming to IEC 50102 |
| Standards | UL 508; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-1; JIS C8201-5-1; IEC 60947-5-1; JIS C8201-1 |
| Product Certifications | DNV; CSA; BV; LROS (Lloyds register of shipping); UL listed |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 3.400 cm |
| Package 1 Length | 5.400 cm |
| Package 1 Weight | 17.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 300 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.564 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 2400 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 54.852 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
