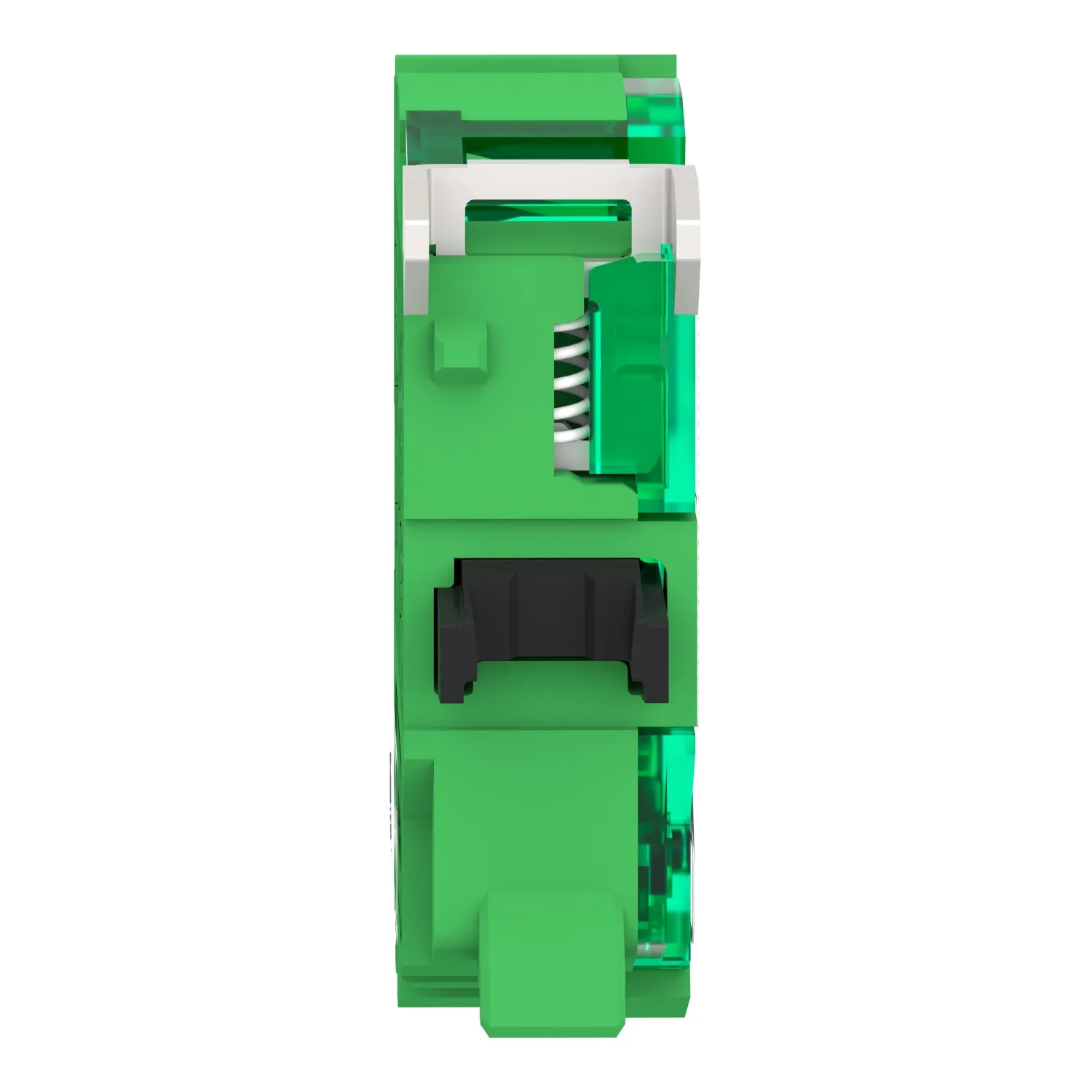

Transmitter; Harmony XB5R
Schneider ZBRT2, Transmitter; Harmony XB5R. Category: Harmony Wireless Push buttons & Ecosystem. Request a quote for price and lead time.
- Reference:ZBRT2
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:143.50 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB5
- Product Or Component Type
- Wireless and batteryless transmitter
- Device Short Name
- XB5R
- Bezel Material
- Plastic
Product Description
This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button and 1 radio frame sent at the release of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g. This transmitter is only compatible with receiver ZBRRp version greater than or equal to 2.0, relay antenna ZBRA1 version greater than or equal to 2.0, and access point ZBRNp version greater than 1.2.
Key Features
- "Quick and easy assembly and disassembly"
- "Robustness to withstand harsh environments"
- "With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board"
- "A wide choice of contact blocks for general purposes or specific applications (low current, standard)"
- "Excellent mechanical connection with operator head"
Technical Specifications
Main8
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Wireless and batteryless transmitter |
| Device Short Name | XB5R |
| Bezel Material | Plastic |
| Mounting Diameter | 22 mm |
| Transmission Frequency | 2405 MHz |
| Emission Class | 5M00G7W |
| Antenna Type | Omnidirectional |
Complementary21
| Max Power Consumption In W | 1 mW |
|---|---|
| Number Of Channels | 16 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Embedding Depth | 42 mm |
| CAD Overall Height | 41.5 mm |
| CAD Overall Width | 30 mm |
| CAD Overall Depth | 43 mm |
| Net Weight | 0.025 kg |
| Operating Travel | 4.3 mm (total travel) |
| Operating Force | 10 N C/O changing electrical state |
| Mechanical Robustness | Free fall resistance 1000 mm conforming to IEC 60068-2-32 |
| Standards | CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; UL 508 |
| Radio Agreement | ANATEL; ARIB T66; FCC; ICASA; RSS |
| Communication Port Protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Maximum Sensing Distance | 100 m in free field; 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure; 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Acquisition Time | 2 ms |
| Response Time | < 2 ms |
| Fixing Mode | Fixing nut beneath head: 2…2.4 N.m |
| Electrical Composition Code | PW1 |
Environment11
| Ambient Air Temperature For Storage | -40…70 °C |
|---|---|
| Ambient Air Temperature For Operation | -40…70 °C |
| Relative Humidity | 95 % at -40…70 °C without condensation |
| IP Degree Of Protection | IP30 (back face) conforming to IEC 60529 |
| IK Degree Of Protection | IK03 conforming to IEC 50102 |
| Mechanical Durability | 400000 cycles |
| Shock Resistance | 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Vibration Resistance | 5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6; +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic Compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: |
| Product Certifications | CSA; CCC; UL; GOST; C-Tick; BT 2006/95/EC |
| Directives | 2004/108/EC - electromagnetic compatibility; 1999/5/EC - R&TTE directive |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.7 cm |
| Package 1 Width | 5.4 cm |
| Package 1 Length | 6.2 cm |
| Package 1 Weight | 34.0 g |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 42 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.601 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
