Telemecanique Sensors

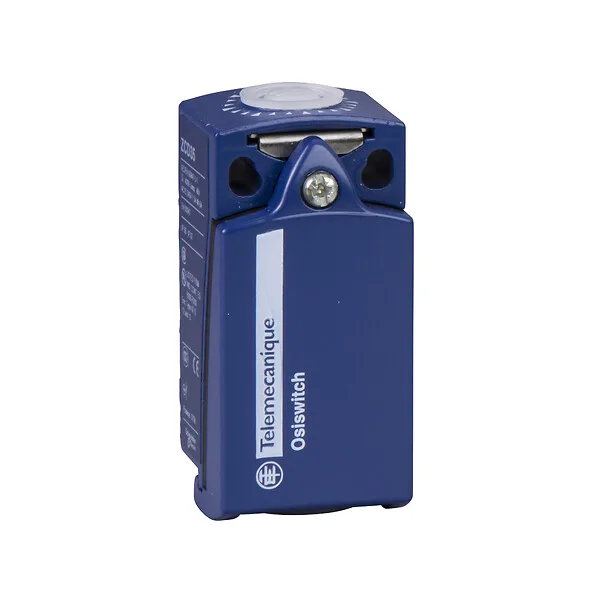

ZCD28 - LIMIT SWITCH BODY ZCD 2 NO TERMINALS.
Telemecanique Sensors ZCD28, LIMIT SWITCH BODY ZCD 2 NO TERMINALS.. Category: Standard size - up to 70 m. Request a quote for price and lead time.
- Reference:ZCD28
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:57.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard compact
- Product Or Component Type
- Limit switch body
- Device Short Name
- ZCD
Product Description
Telemecanique Sensors ZCD28 (LIMIT SWITCH BODY ZCD 2 NO TERMINALS.). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main9
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard compact |
| Product Or Component Type | Limit switch body |
| Device Short Name | ZCD |
| Design | Compact |
| Body Type | Fixed |
| Body Material | Zamak |
| Contacts Type And Composition | 2 NO |
| Contact Operation | Slow-break, simultaneous |
Complementary5
| Electrical Connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
|---|---|
| Contacts Insulation Form | Zb |
| Contacts Material | Silver plated contacts |
| Positive Opening | Without |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
Environment1
| Product Compatibility | XCKD |
|---|
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.2 cm |
| Package 1 Width | 4.2 cm |
| Package 1 Length | 7.6 cm |
| Package 1 Weight | 0.139 kg |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 27 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.032 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 7.6 cm |
| Package 3 Width | 4.2 cm |
| Package 3 Length | 4.2 cm |
| Package 3 Weight | 0.14 kg |
| Indivisible Sale Quantity | 1 |
