Telemecanique Sensors

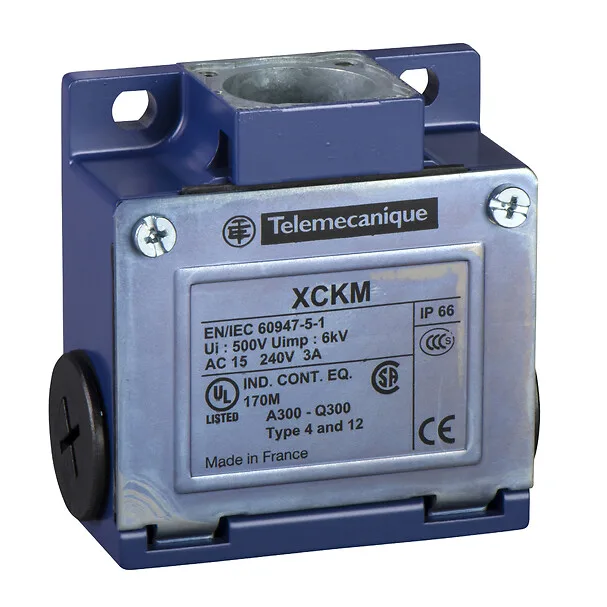

ZCKMD39 - METAL BODY 1NO2NC SA
Telemecanique Sensors ZCKMD39, METAL BODY 1NO2NC SA. Category: Compact range. Request a quote for price and lead time.
- Reference:ZCKMD39
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:100.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard format
- Product Or Component Type
- Limit switch body
- Device Short Name
- ZCKM
Product Description
Telemecanique Sensors ZCKMD39 (METAL BODY 1NO2NC SA). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main11
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch body |
| Device Short Name | ZCKM |
| Body Type | Fixed |
| Product Compatibility | XCKM |
| Body Material | Metal |
| Cable Entry | 3 entries tapped for Pg 11 cable gland |
| Contacts Type And Composition | 2 NC + 1 NO |
| Contact Operation | Snap action |
| Contacts Material | Silver plated contacts |
Complementary5
| Local Display | Without |
|---|---|
| Electrical Connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² |
| Positive Opening | With |
| Resistance Across Terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals Description ISO N°1 | (11-12)NC, (13-14)NO, (21-22)NC, (23-24)NO |
Environment3
| IP Degree Of Protection | IP65 |
|---|---|
| IK Degree Of Protection | IK03 |
| Environmental Characteristic | Standard environment |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 6.5 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 0.231 kg |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.812 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 8.5 cm |
| Package 3 Width | 3.5 cm |
| Package 3 Length | 6.5 cm |
| Package 3 Weight | 0.231 kg |
| Indivisible Sale Quantity | 1 |
