Telemecanique Sensors

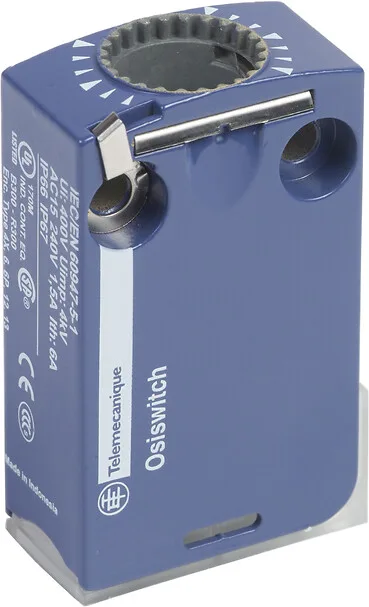

ZCMD21 - BODY 1NO1NC SA
Telemecanique Sensors ZCMD21, BODY 1NO1NC SA. Request a quote for price and lead time.
- Reference:ZCMD21
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:37.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard format
- Product Or Component Type
- Limit switch body
- Device Short Name
- ZCMD
Product Description
Telemecanique Sensors ZCMD21 (BODY 1NO1NC SA). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main9
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch body |
| Device Short Name | ZCMD |
| Design | Miniature |
| Body Type | Plug-in body |
| Body Material | Zamak |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | Snap action |
Complementary7
| Product Compatibility | XCMD |
|---|---|
| Electrical Connection | Plug-in without pre-cabled connection |
| Contacts Insulation Form | Zb |
| Contacts Material | Silver plated contacts |
| Positive Opening | With |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Resistance Across Terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 1.778 cm |
| Package 1 Width | 3.302 cm |
| Package 1 Length | 5.08 cm |
| Package 1 Weight | 0.0571 kg |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 40 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.693 kg |
| Unit Type Of Package 3 | BAG |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 1.7 cm |
| Package 3 Width | 5.2 cm |
| Package 3 Length | 3.1 cm |
| Package 3 Weight | 0.056 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Datasheets1
Catalogues2
Environmental Information3
Declarations3
CAD Drawings6
- Bodies with gold contact type XCM D (dwf)Opens in a new tab
- Bodies with gold contact type XCM D (eps)Opens in a new tab
- Bodies with gold contact type XCM D (dwg)Opens in a new tab
- Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly body without precabled connector - 3D CAD (dwg)Opens in a new tab
- Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly body without precabled connector - 3D CAD (dwg)Opens in a new tab
- Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly body without precabled connector - 3D CAD (dwg)Opens in a new tab
