Telemecanique Sensors

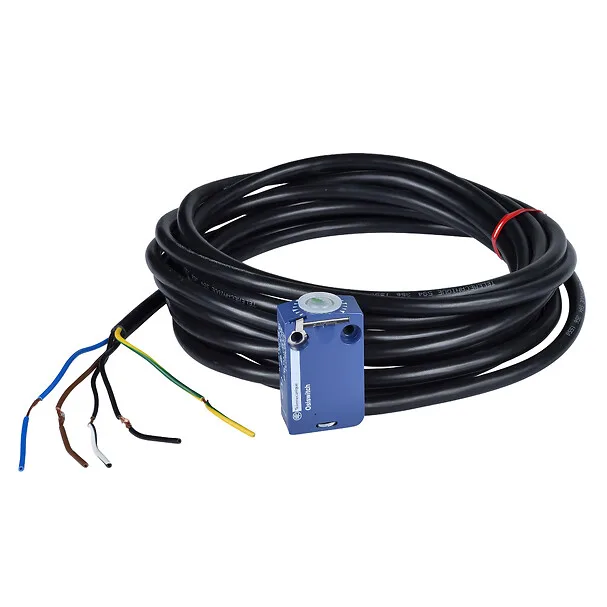

ZCMD21L3 - LIMIT SWITCH METAL NO AND NC
Telemecanique Sensors ZCMD21L3, LIMIT SWITCH METAL NO AND NC. Category: Standard size - up to 70 m. Request a quote for price and lead time.
- Reference:ZCMD21L3
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:67.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard format
- Product Or Component Type
- Limit switch body
- Device Short Name
- ZCMD
Product Description
Telemecanique Sensors ZCMD21L3 (LIMIT SWITCH METAL NO AND NC). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main9
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch body |
| Device Short Name | ZCMD |
| Design | Miniature |
| Body Type | Fixed |
| Body Material | Zamak |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | Snap action |
Complementary8
| Product Compatibility | XCMD |
|---|---|
| Electrical Connection | Removable cable |
| Cable Composition | 5 x 0.75 mm² |
| Contacts Insulation Form | Zb |
| Wire Insulation Material | PvR |
| Contacts Material | Silver plated contacts |
| Positive Opening | With |
| Resistance Across Terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2 cm |
| Package 1 Width | 15 cm |
| Package 1 Length | 15 cm |
| Package 1 Weight | 0.289 kg |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 30 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.002 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 40 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 12.273 kg |
| Indivisible Sale Quantity | 1 |
