Telemecanique Sensors

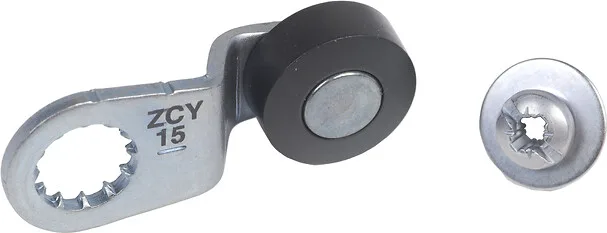

ZCY15 - THERMOPLST ROLLER LEVER TRACK XX XCM Y
Telemecanique Sensors ZCY15, THERMOPLST ROLLER LEVER TRACK XX XCM Y. Category: Lever. Request a quote for price and lead time.
- Reference:ZCY15
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:4.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard format
- Product Or Component Type
- Limit switch lever
- Device Short Name
- ZCY
Product Description
Telemecanique Sensors ZCY15 (THERMOPLST ROLLER LEVER TRACK XX XCM Y). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main8
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch lever |
| Device Short Name | ZCY |
| Product Compatibility | XCKD, XCKP, XCKT, XCMD |
| Movement Of Operating Head | Rotary |
| Type Of Operator | Roller lever spring return thermoplastic |
| Type Of Approach | Lateral approach |
Complementary2
| Switch Actuation | By 30° cam |
|---|---|
| Positive Opening | With |
Environment1
| Environmental Characteristic | Standard environment |
|---|
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units13
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 1 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 2 cm |
| Package 1 Weight | 0.013 kg |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 150 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.351 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Datasheets1
Catalogues2
Environmental Information3
CAD Drawings6
- Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly lever, roller lever - 3D CAD (dxf)Opens in a new tab
- Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly lever, roller lever - 3D CAD (dwg)Opens in a new tab
- Limit switches OsiSense XC, miniature 30*50*16 type XCM, sub assembly lever, roller lever - 3D CAD (dwg)Opens in a new tab
- Thermoplastic roller lever, track 29/36 mm (eps)Opens in a new tab
- Thermoplastic roller lever, track 29/36 mm (dwg)Opens in a new tab
- Thermoplastic roller lever, track 29/36 mm (dwg)Opens in a new tab
