Telemecanique Sensors XT7C40FP262 - Capacitive sensor, XT7, 40x40x117 mm, plastic, Sn 15 mm, Pg 13, 24...240 VAC, removable head, form C
Telemecanique Sensors

Capacitive sensor, XT7, 40x40x117 mm, plastic, Sn 15 mm, Pg 13, 24...240 VAC, removable head, form C

Pas en vente
Produits en vente dans cette catégorie

Telemecanique Sensors XT7C40FP262, Capacitive sensor, XT7, 40x40x117 mm, plastic, Sn 15 mm, Pg 13, 24...240 VAC, removable head, form C. Catégorie : 40x40x40mm. Pas en vente ; aucun prix ni devis n’est proposé pour ce produit.

Caractéristiques clés

Sensor Type
Capacitive proximity sensor
Product Specific Application
Detection of insulated or conductive materials
Sensor Name
XT7
Sensor Design

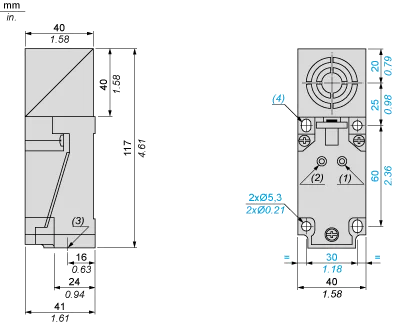

Form 40 x 40 x 117
← Retour au catalogue

Description du produit

Kapasitif Sensör - Xt7 - 40 X 40 X 117 - Plastik - Sn 15 Mm - 24..240 V Ac

Caractéristiques techniques

Principales caractéristiques17
Sensor TypeCapacitive proximity sensor
Product Specific ApplicationDetection of insulated or conductive materials
Sensor NameXT7
Sensor DesignForm 40 x 40 x 117
Size117 mm
Body TypePlug-in body
Detector Flush Mounting AcceptanceFlush mountable
MaterialPlastique
Enclosure MaterialPlastique
Type Of Output SignalDiscrete
Wiring Technique2-wire
Discrete Output Function1 NO or 1 NC programmable
Output Circuit TypeAC
Electrical ConnectionScrew clamp terminal, 3 x 1.5 mm²
[Us] Rated Supply Voltage24...240 V AC 50...60 Hz
Delay Response20 ms
IP Degree Of ProtectionIP67 conforming to IEC 60529
Caractéristiques complémentaires11
Detection Face5 positions turret head
Differential Travel< 0.2 x Sr
Repeat Accuracy< 0.1 x Sr
Status LEDSupply state indication: 1 LED (green), output state indication: 1 LED (yellow)
Residual Current1.5 mA open state
Switching Frequency<= 25 Hz
Voltage Drop<5.5 V (closed)
Delay First Up150 ms
Delay Recovery30 ms
MarkingCE
Setting-upSensitivity by potentiometer
Environnement1
Product CertificationsCSA, UL
Unités d'emballage6
Unit Type Of Package 1piece
Number Of Units In Package 11
Package 1 Height5 cm
Package 1 Width5 cm
Package 1 Length14.5 cm
Package 1 Weight224 g
Durabilité de l'offre1
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
