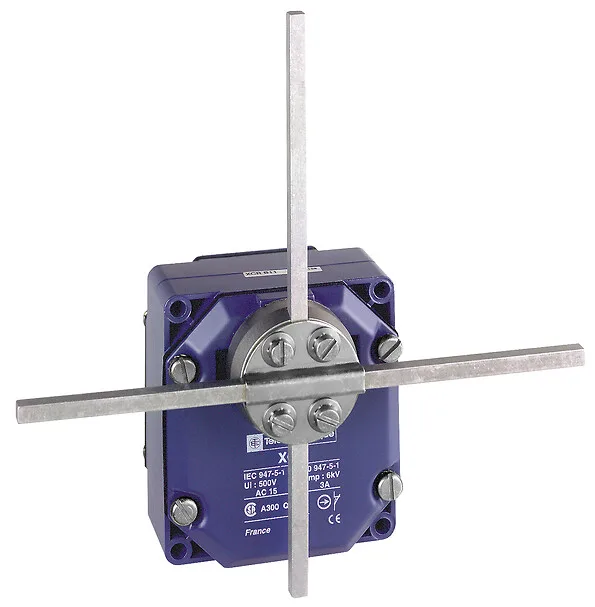

Telemecanique Sensors XCRE18 - LIMIT SWITCH XCRE SQUARE ROD 6 MM CROSSE
Telemecanique Sensors

XCRE18 - LIMIT SWITCH XCRE SQUARE ROD 6 MM CROSSE

Telemecanique Sensors XCRE18, LIMIT SWITCH XCRE SQUARE ROD 6 MM CROSSE. Kategori: Standard size - up to 70 m. Fiyat ve teslim süresi için teklif isteyin.

  • Referans Kodu:XCRE18
  • Üretici / Marka:Telemecanique Sensors
  • Stok Durumu:Sipariş Üzerine / Stok Sorunuz
  • Fiyat:255,00 EUR (Teklif İsteyiniz)
WhatsApp ile Fiyat Teklifi Alın

Öne Çıkan Özellikler

Range Of Product
OsiSense XC
Series Name
Special format
Product Or Component Type
Limit switch
Device Short Name
XCR
← Kataloğa Geri Dön

Ürün Açıklaması

XCRE18 - XCRE SINIR ŞALTERİ KARE ÇUBUK 6 MM ÇAPRAZ

Teknik Özellikler

Range Of ProductOsiSense XC
Series NameSpecial format
Product Or Component TypeLimit switch
Product Specific ApplicationFor hoisting and mechanical handling applications
Device Short NameXCR
Body TypeFixed
Head TypeRotary head
MaterialMetal
Fixing ModeBy the body
Movement Of Operating HeadRotary
Type Of OperatorStay put crossed rods lever metal square rod 6 mm
Type Of ApproachLateral approach, 2 directions
Body MaterialZinc alloy
Contacts Type And Composition2 x (1 NC + 1 NO)
Contact OperationSnap action
Cable Entry1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300
Electrical ConnectionScrew-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contact Block Per Direction [control Circuit]2 per direction
Switch ActuationBy any moving part
Positive OpeningWith
Contacts İnsulation FormZb
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance Across Terminals25 MOhm conforming to IEC 60255-7 category 3
Terminals Description ISO N°1(13-14)NO, (21-22)NC
Shock Resistance68 gn conforming to IEC 60068-2-27
Vibration Resistance9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP Degree Of ProtectionIP54 conforming to IEC 60529
Overvoltage CategoryClass I conforming to IEC 61140, class I conforming to NF C 20-030
Protective TreatmentTC
Product CertificationsCCC, CSA
StandardsCSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, NF C 79-130
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit Type Of Package 1piece
Number Of Units İn Package 11
Package 1 Height8.4 cm
Package 1 Width10.4 cm
Package 1 Length20.6 cm
Package 1 Weight1.05 kg
Unit Type Of Package 2S02
Number Of Units İn Package 25
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight5.72 kg
Unit Type Of Package 3carton
Number Of Units İn Package 31
Package 3 Height8.5 cm
Package 3 Width10.3 cm
Package 3 Length20.5 cm
Package 3 Weight1.053 kg
Indivisible Sale Quantity1

Dokümanlar ve İndirmeler

Dokümanlar üreticinin sitesinde yayınlanır ve yeni sekmede açılır.

Veri Sayfaları1
Kataloglar2
Kullanım Talimatları3
Çevre Bilgileri3
Uygunluk Beyanları3
CAD Çizimleri6
